WP1550V-VIBROPLATE

Despiece de Baseplate/Console cpl. · WP1550V

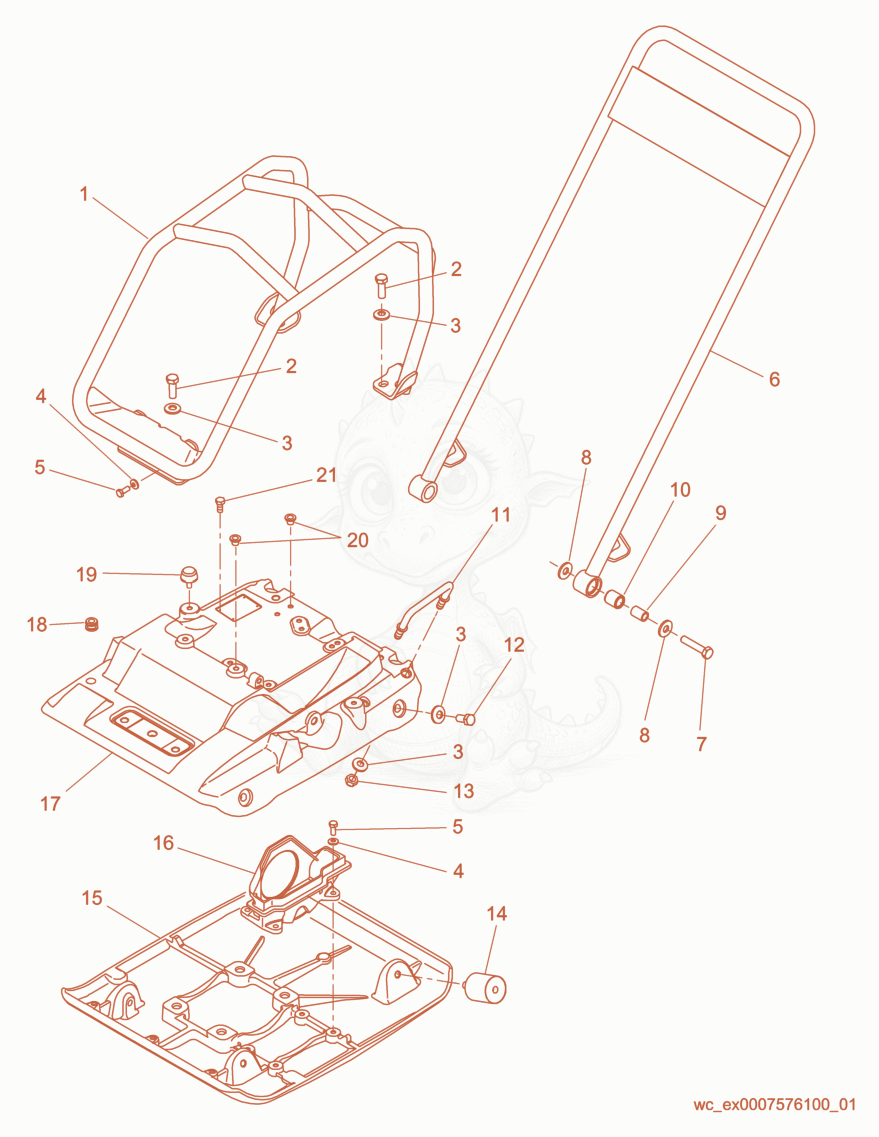

Despiece del Baseplate/Console cpl. de una máquina Wacker Neuson WP1550V, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000110486No la vendemos
    Lifting cage frame×1
  • 25000011423
    $0.75
    SCREW M12 X 30 HX.HD. - 5000011423×4
  • 35000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×12
  • 45000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×6
  • 55000119211
    $0.37
    SCREW M8X20 W/THDLK,202 - 5000119211×6
  • 65000088872
    $557.41
    GUIDE HANDLE-WELDMENT - 5000088872×1
  • 75000011303
    $1.44
    SCREW M12 X 60 HX.HD. - 5000011303×2
  • 85000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×4
  • 95000029001
    $7.07
    BUSHING-HANDLE MOUNTING - 5000029001×2
  • 105003007042
    $0.62
    BUSHING-NYLON - 5003007042×2
  • 115000089330
    $108.93
    NLA HANDLE-LIFTING - 5000089330×2
  • 125000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×4
  • 135000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 145000088871
    $28.84
    X-0130000 SHOCKMOUNT 50 X 55-75SH - 5000088871×4
  • 155000115587
    $1,343.27
    ASM_Baseplate 50 cm - 5000115587×1
  • 165000088853No la vendemos
    Lower beltguard×1
  • 175000113959
    $1,187.11
    ASM_Console 50 cm - 5000113959×1
  • 185000070465
    $1.22
    GROMMET .315 ID,ROUND,RUBBER - 5000070465×1
  • 195000088873
    $9.47
    SHOCKMOUNT 30 X 15-55SH,FORM D - 5000088873×2
  • 205000074985
    $0.18
    PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×6
  • 215002005946
    $0.25
    SCREW #3-48 X 5/32,HX.HD. - 5002005946×4
