Vibroplate WP KMAT

Despiece de Cylinder housing · WPKMAT

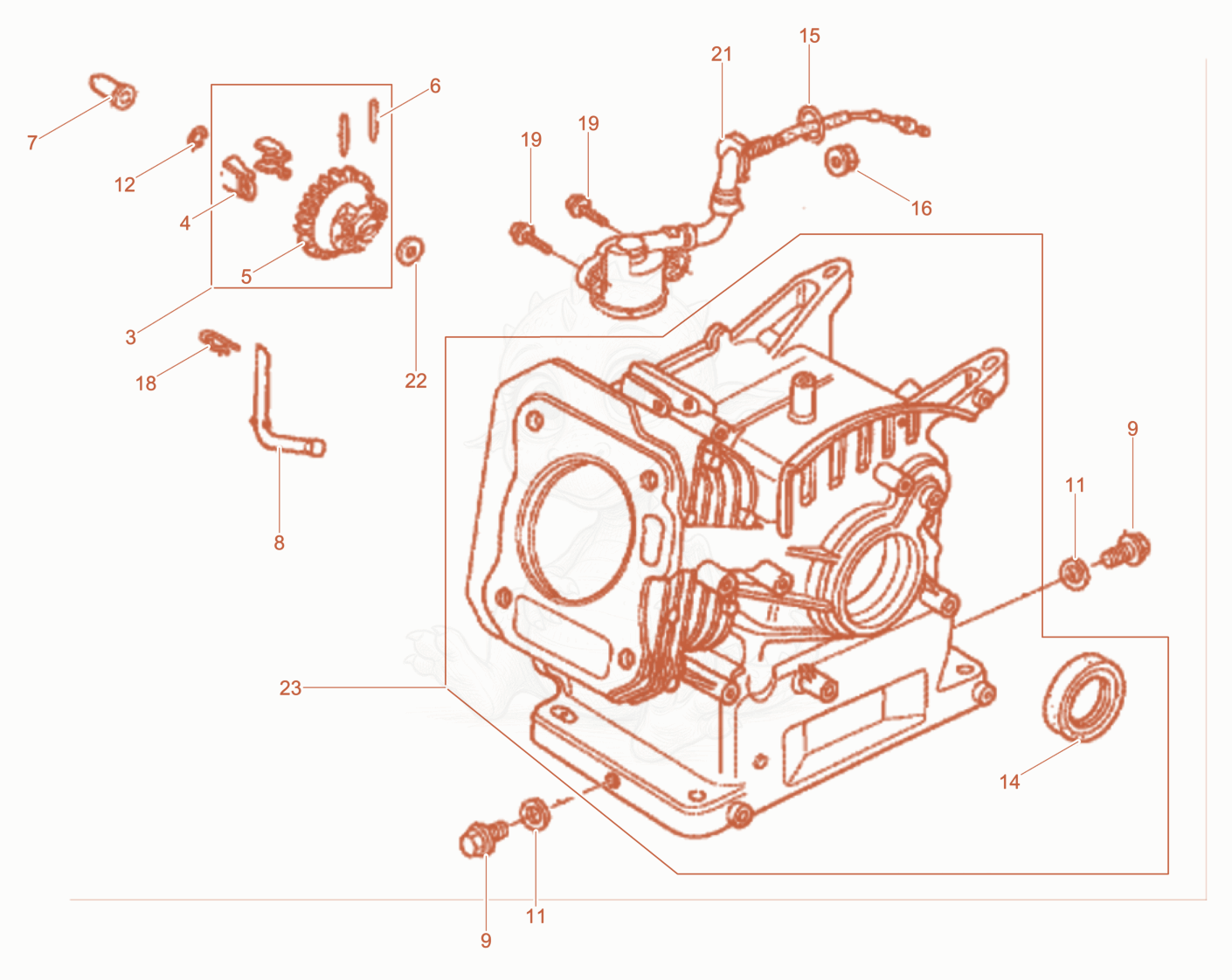

Despiece del Cylinder housing de una máquina Wacker Neuson WPKMAT, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 35100005429No la vendemos
    Governor cpl.×1
  • 45100005430No la vendemos
    Weight×2
  • 55100005431No la vendemos
    Bracket×1
  • 65000156689
    $2.74
    PIN-GOVERNOR WEIGHT - 5000156689×2
  • 75000406670
    $5.10
    SLIDER,GOVERNOR - 5000406670×1
  • 85100005433No la vendemos
    Governor×1
  • 95000070964
    $3.65
    PLUG - 5000070964×2
  • 115000070963
    $1.63
    Washer - 5000070963×2
  • 125000081615
    $2.07
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 145000053983
    $12.53
    SEAL-SHAFT 25 X 41 X 6 - 5000053983×1
  • 145100036262No la vendemos
    Ring×1
  • 145100039035
    $18.82
    Ring seal - 5100039035×1
  • 151000133535No la vendemos
    o-ring×1
  • 165000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 185000054033
    $1.84
    PIN - 5000054033×1
  • 195000072333
    $2.43
    SCREW M6 X 12,HX.FLANGE - 5000072333×2
  • 215100056844
    $26.51
    SWITCH ASSY-OIL - 5100056844×1
  • 225000071639
    $0.98
    WASHER 6MM,PLAIN - 5000071639×1
  • 235100050559
    $1,650.42
    Motor housing cpl. - 5100050559×1
