Wacker Neuson PartsREPUESTOS ORIGINALES OEM

WPU1550AW-US

Despiece de Console cpl · WPU1550AW-US

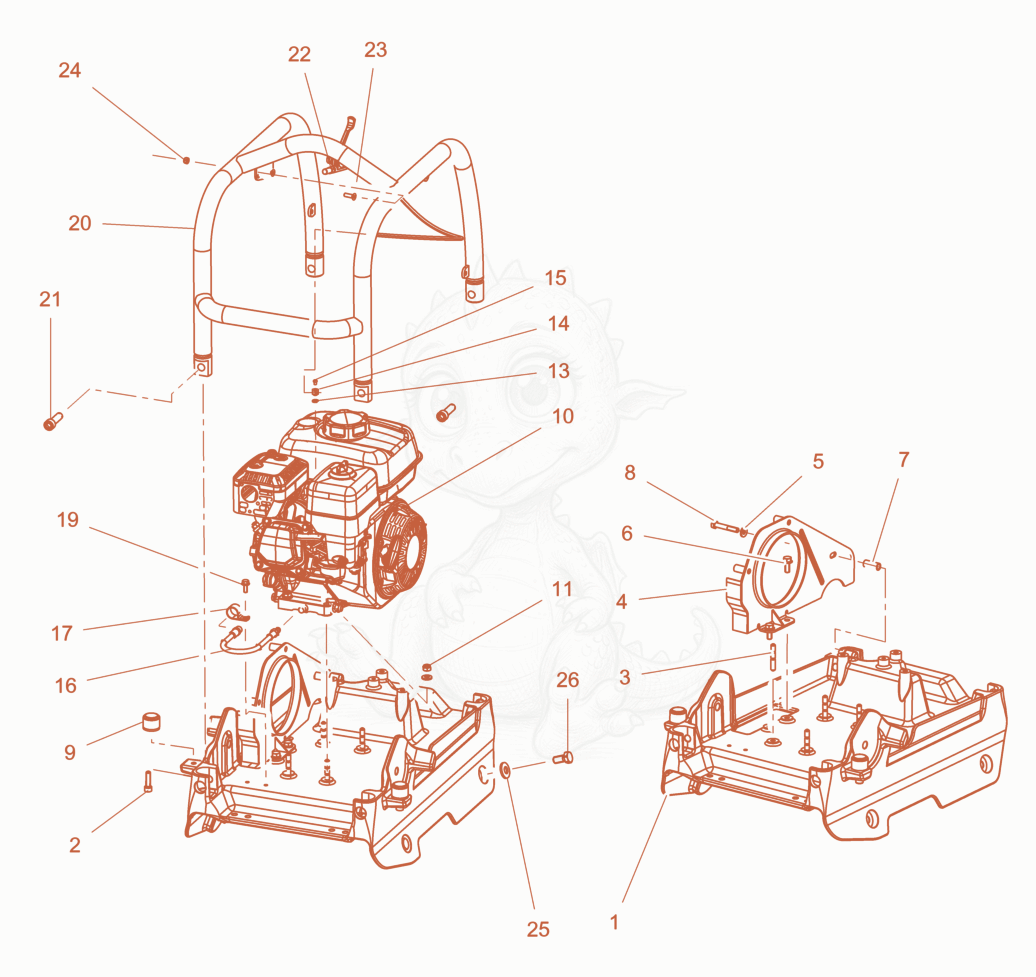

Despiece del Console cpl de una máquina Wacker Neuson WPU1550AW-US, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100064548No la vendemos
    CONSOLE MACHINED - WPU×1
  • 21000013014No la vendemos
    Cheese head screw×2
  • 35000010929
    $6.43
    STUD M8 X 35 - 5000010929×4
  • 45000401656
    $168.27
    BACKGUARD BACK WELDMENT - 5000401656×1
  • 55000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×5
  • 65000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
  • 75000401890
    $3.85
    SUPPORT-TUBE - 5000401890×1
  • 85000011343
    $0.44
    SCREW M8 X 50 HX.HD. - 5000011343×1
  • 95100058399
    $14.73
    SHOCKMOUNT - 5100058399×2
  • 105100050606
    $1,627.29
    Engine Honda Gx160Uh2 Qwx2 5100050606×1
  • 115000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 135000056041
    $0.36
    RET.RING-EXT 5MM,E-TYPE - 5000056041×1
  • 145100070021No la vendemos
    Loncin wire holder×1
  • 165000402178
    $79.46
    DRAIN OIL HOSE ASSEMBLY - 5000402178×1
  • 175000110458
    $0.65
    CLAMP-TUBE CLIP - 5000110458×1
  • 195000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
  • 205000401625No la vendemos
    Lift cage×1
  • 215000011527
    $1.10
    SCREW M12 X 40 SOC.HD. - 5000011527×4
  • 225000400348
    $146.74
    THROTTLE LEVER ASSY INK WIRE - 5000400348×1
  • 235000401855
    $1.02
    SCREW M6X20 HEX SOC,FLAT HD - 5000401855×2
  • 245000021679
    $0.22
    NUT-LOCK VM6 HEX - 5000021679×2
  • 255000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 265000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×4
