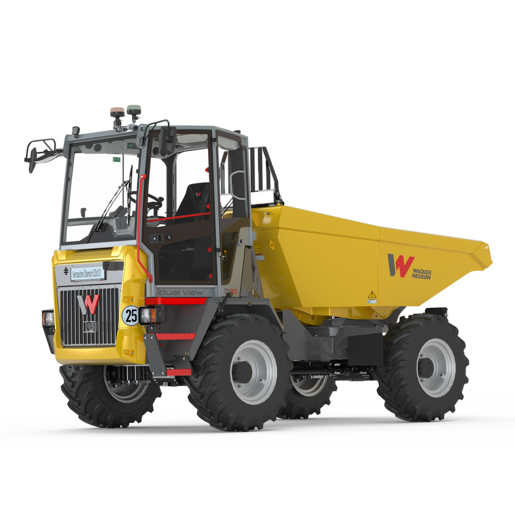

Optimized seat console, more efficient work, more power. In every direction.
Highlights
- Swiveling operator's seat with plenty of legroom
- Fold-down armrest for entry and exit from both sides
- Hydrostatic 4-wheel drive with automatic ECO mode
- Cab
- Easy service and maintenance access
Standard ComponentsGeneral
- 180° swivel seat console with automatic switching of the steering, direction of travel and direction indicators
- Main seat position: skip at the back, secondary seat position: skip at the front
- Payload 9,000 kg
- Hydraulic swivel skip, 3,300 l level / 4,350 l heaped
- Maximum Speed: 30km/h (18.6mph)
= 30 km/h (18.6 mph) forward speed in seated position
= 15 km/h (9.3 mph) reverse speed in seated position
= 20 km/h (12.4 mph) forward speed in secondary seat position
= 15 km/h (9.3 mph) reverse speed in secondary seat position
- Tires - Alliance 331 flotation (500/60-22.5)
- Reversing camera (IP69) with infrared and white LEDs
- Multifunctional 7 inch color display (IP69) for camera and machine signals (e.g. driving speed, counter for maintenance intervals)
- Lockable vandalism protection for the display
- Document box accessible from the driver's seat (A4 format, waterproof, lockable)
- Street lighting for use in the main position
- A work light in the direction of the skip
- Mirror package (left, right and front / ramp mirror)
- Road Gear (includes a wheel chock and front and rear license plate bracket)
- Reversing warning device, signal change depending on the seat position
- Main battery switch and positive pole behind a lockable cover, accessible from the ground
Engine
- Deutz TD 2.9 diesel engine, 74 HP, 4-cylinder, turbocharged, liquid cooled, T4F emissions compliant
- Auto Stop function
Hydraulics
- Permanent all-wheel drive
- Hydrostatic automotive drive
- Hydrostatic travel drive with hydrostatic braking effect - with brake light
- Hydrostatic articulated frame steering (load sensing)
- Combined brake-inch pedal, designed as a 2-circuit brake system
- Electrically operated spring-loaded parking brake
Security
- EquipCare telematics hardware - subscription ready
