SPARE PARTS LIST 1402Primus Force SP

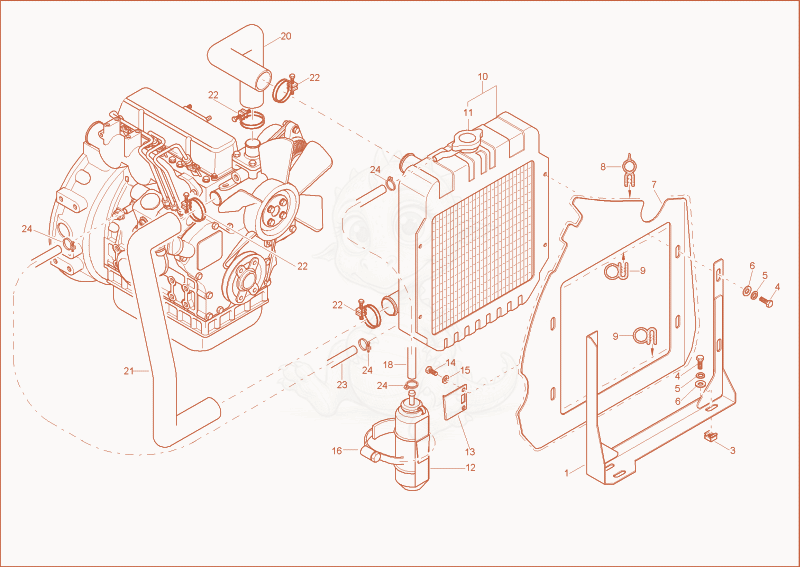

1402PRIMUSFORCE water cooler Diagram

Exploded parts diagram of the water cooler of a Wacker Neuson 1402PRIMUSFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000065788Not stocked
    bracket cooler×1
  • 31000015425Not stocked
    cage nut×3
  • 41000015343Not stocked
    hex screw×7
  • 51000015437Not stocked
    lock washer×7
  • 61000013027Not stocked
    washer×7
  • 71000079079Not stocked
    air guide plate×1
  • 81000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×2
  • 91000098197
    $18.72
    RUBBER PROFILE - 1000098197×0.6
  • 101000004327
    $7,601.41
    Water Cooler 1000004327×1
  • 111000019973Not stocked
    cooler cap×1
  • 121000098565
    $69.09
    expansion tank - 1000098565×1
  • 131000073579
    $25.33
    bracket expansion tank - 1000073579×1
  • 141000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 151000015436Not stocked
    lock washer×2
  • 161000065816
    $26.84
    clamp - 1000065816×1
  • 181000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.5
  • 201000065533Not stocked
    cooler water hose×1
  • 211000065532Not stocked
    cooler water hose×1
  • 221000067377Not stocked
    hose clamp×1
  • 231000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.7
  • 241000083292Not stocked
    hose clamp×4
