SPARE PARTS LIST 1402Primus Force SP

1402PRIMUSFORCE motor Diagram

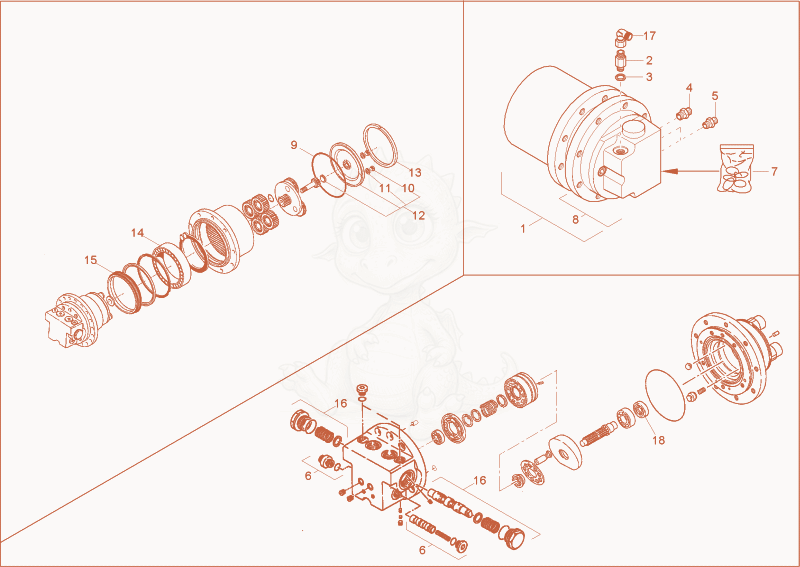

Exploded parts diagram of the motor of a Wacker Neuson 1402PRIMUSFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000065944Not stocked
    drive unit×2
  • 21000082945
    $17.82
    GEO08LR1/4OMDA3C - 1000082945×2
  • 31000095065Not stocked
    o-ring×2
  • 41000015488Not stocked
    screw joint×2
  • 51000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×4
  • 61000148457Not stocked
    control piston×2
  • 71000066038Not stocked
    seal kit drive motor×2
  • 81000065880
    $4,613.96
    MOTOR - 1000065880×2
  • 91000095043
    $1.36
    O-RING - 1000095043×2
  • 101000015477Not stocked
    lock screw×4
  • 111000148374
    $4.75
    SEAL RING - 1000148374×4
  • 121000065881Not stocked
    cover×2
  • 131000065917Not stocked
    lock ring×2
  • 141000065961Not stocked
    bearing drive assy×2
  • 151000066037Not stocked
    life time seal×2
  • 161000148456Not stocked
    VALVE SET×2
  • 171000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 181000165381
    $121.21
    SEAL RING - 1000165381×2
