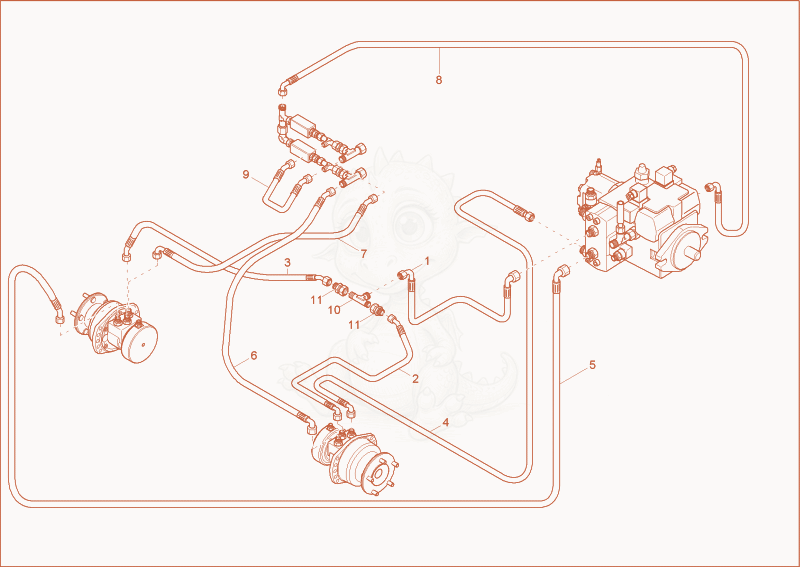

1501 TRAVELLING GEAR INSTALLATION Diagram

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION of a Wacker Neuson 1501, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000077670
$47.39
SLHYDR 3SP 16 PP20 90 PP20 90 L375,0 310 - 1000077670×1
21000077447
$28.07
SLHYDR 3SP 12 PP16 45 PP16 45 L480,0 270 - 1000077447×1
31000077448
$28.63
SLHYDR 3SP 12 PP16 45 PP16 45 L510,0 90 - 1000077448×1
41000104160Not stocked
Hose×1
51000077671Not stocked
Hose×1
61000077422Not stocked
Hose×1
71000077452Not stocked
Hose×1
81000076616Not stocked
Hose×1
91000099206Not stocked
Hose×1
101000083091
$36.29
T20SA3CX - 1000083091×1
111000082890Not stocked
screw joint×2
