1501 wiring harness engine Diagram

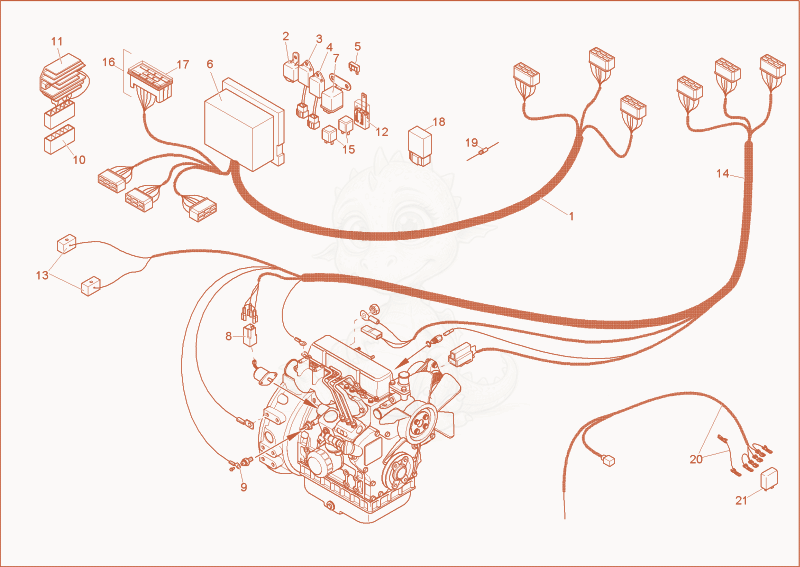

Exploded parts diagram of the wiring harness engine of a Wacker Neuson 1501, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000079015Not stocked
main harness×1
21000012333Not stocked
start relay×1
31000005108Not stocked
time relay×1
41000012334Not stocked
time relay×1
51000015298
$3.25
FUSE - 1000015298×1
61000079018Not stocked
relay box cover×1
71000012332Not stocked
relay cutoff solenoid×1
81000095323
$3.39
plug sleeve housing - 1000095323×1
91000081756Not stocked
cable lug×1
101000020854Not stocked
multi plug×1
111000002930Not stocked
tension regulator×1
121000027186
$10.05
Bracket - 1000027186×1
131000002986Not stocked
valve plug×2
141000079014Not stocked
wiring harness engine×1
151000353650Not stocked
relay×2
161000001534Not stocked
fuse box×1
171000099373
$35.35
COVER FUSE BOX - 1000099373×1
181000012912Not stocked
diode×1
191000096858
$10.49
DIODE - 1000096858×4
201000138376Not stocked
wiring harness×1
211000138668
$260.39
TIME RELAY - 1000138668×1
