SPARE PARTS LIST 1502RD Force SP

1502RDFORCE telescope arm Diagram

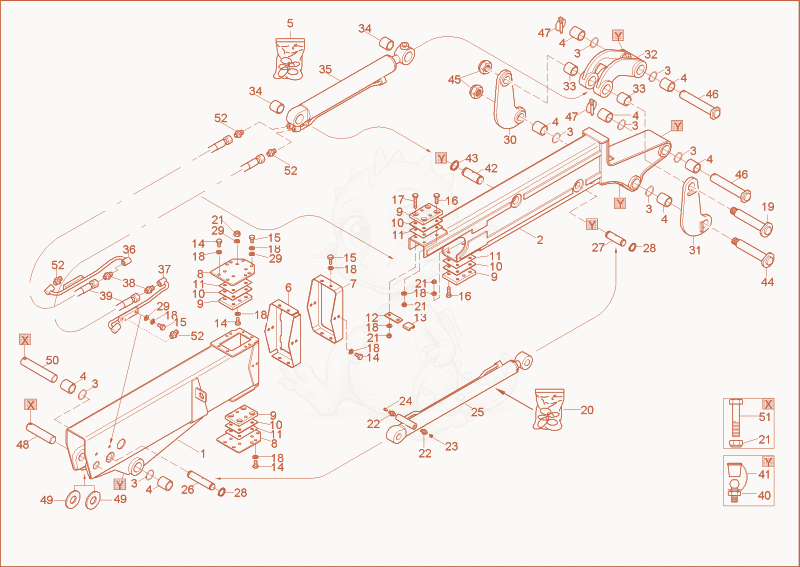

Exploded parts diagram of the telescope arm of a Wacker Neuson 1502RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000064674Not stocked
    telescope stick×1
  • 21000064675Not stocked
    telescope stick×1
  • 31000015466Not stocked
    lock ring×6
  • 41000015617Not stocked
    steel bushing×6
  • 51000134138Not stocked
    cylinder seal kit×1
  • 61000002973Not stocked
    seal×1
  • 71000002972Not stocked
    telescoparm cover×1
  • 81000002971Not stocked
    fasten plate×2
  • 91000016184Not stocked
    slide plate×4
  • 101000002970Not stocked
    plate×5
  • 111000002969Not stocked
    plate×1
  • 121000064681Not stocked
    clamp plate×1
  • 131000097254Not stocked
    edge protection×0.05
  • 141000013008Not stocked
    hex screw×10
  • 151000019136Not stocked
    hex screw×20
  • 161000015343Not stocked
    hex screw×6
  • 171000015370Not stocked
    hex screw×2
  • 181000015437Not stocked
    lock washer×20
  • 191000003030
    $74.23
    PIN - 1000003030×1
  • 201000066624Not stocked
    cylinder seal kit×1
  • 211000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×8
  • 221000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×2
  • 231000082333Not stocked
    thread pin×1
  • 241000082335Not stocked
    thread pin×1
  • 251000064774Not stocked
    telescope cylinder×1
  • 261000064877Not stocked
    pin×1
  • 271000064875Not stocked
    pin×1
  • 281000019253Not stocked
    lock ring×4
  • 291000013027Not stocked
    washer×20
  • 301000064678Not stocked
    pivot plate×1
  • 311000064677Not stocked
    pivot plate×1
  • 321000021420Not stocked
    articulation rod×1
  • 331000015616Not stocked
    steel bushing×2
  • 341000015618
    $21.08
    steel bushing - 1000015618×2
  • 351000064778Not stocked
    bucket cylinder×1
  • 361000003006Not stocked
    connection telescopearm×1
  • 371000003007Not stocked
    connection telescopearm×1
  • 381000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 391000013126Not stocked
    Hose×2
  • 401000015475Not stocked
    grease nipple×8
  • 411000015480Not stocked
    cap grease nipple×8
  • 421000064876Not stocked
    pin×1
  • 431000095359
    $1.42
    lock ring - 1000095359×2
  • 441000003032
    $49.34
    PIN - 1000003032×1
  • 451000015409
    $2.84
    HEXAGON NUT - 1000015409×1
  • 461000003031
    $71.16
    PIN - 1000003031×2
  • 471000015457Not stocked
    cotter pin×2
  • 481000064878Not stocked
    pin×1
  • 491000064680Not stocked
    shim×2
  • 501000003027Not stocked
    pin×1
  • 511000022334Not stocked
    hex screw×2
  • 521000015488Not stocked
    screw joint×4
