SPARE PARTS LIST 1502RD Force SP

1502RDFORCE ARMSYSTEM INSTALLATION Diagram

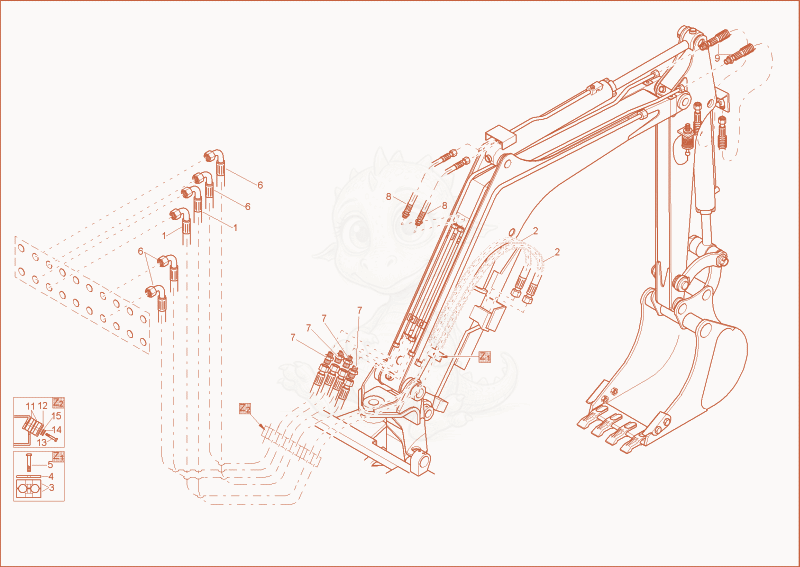

Exploded parts diagram of the ARMSYSTEM INSTALLATION of a Wacker Neuson 1502RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000076702Not stocked
    Hose×2
  • 21000098191Not stocked
    bougiehose×1
  • 31000083285
    $1.23
    clamp Body - 1000083285×1
  • 41000022379Not stocked
    cover plate×1
  • 51000015340Not stocked
    hex screw×1
  • 61000076703Not stocked
    Hose×4
  • 71000018415Not stocked
    screw joint×4
  • 81000016719Not stocked
    Hose×2
  • 91000013154Not stocked
    Hose×2
  • 111000003854Not stocked
    clamp×1
  • 121000003855Not stocked
    cover plate×1
  • 131000015341Not stocked
    hex screw×4
  • 141000015436Not stocked
    lock washer×4
  • 151000015430Not stocked
    washer×4
