SPARE PARTS LIST 2000/3002 SP

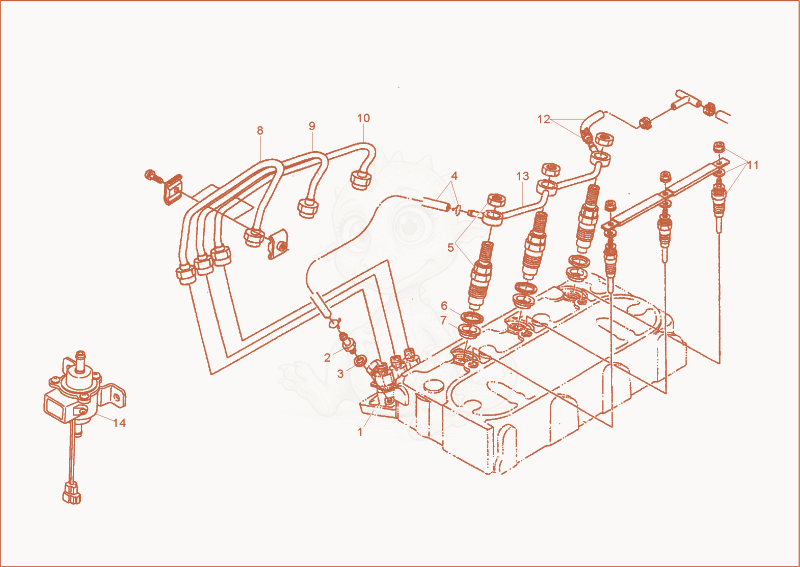

2000/3002 fuel injection equipment Diagram

Exploded parts diagram of the fuel injection equipment of a Wacker Neuson 2000/3002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000109130
    $1,734.03
    INJECTION PUMP - 1000109130×1
  • 21000087618
    $12.97
    Screw - 1000087618×1
  • 31000038599
    $0.79
    Seal - 1000038599×1
  • 41000026898Not stocked
    pipe line×1
  • 51000026899Not stocked
    injection nozzle×3
  • 61000019029Not stocked
    seal ring×3
  • 71000085224
    $5.83
    ENGINE GASKET - 1000085224×3
  • 81000003596
    $35.57
    Injection line - 1000003596×1
  • 91000003597
    $37.46
    Injection line - 1000003597×1
  • 101000003598
    $65.43
    Injection line - 1000003598×1
  • 111000019895Not stocked
    glow plug×3
  • 121000089125Not stocked
    pipe line×1
  • 131000003841
    $36.39
    leakoil line - 1000003841×1
  • 141000004619Not stocked
    fuel pump×1
