SPARE PARTS LIST 2000/3002 SP

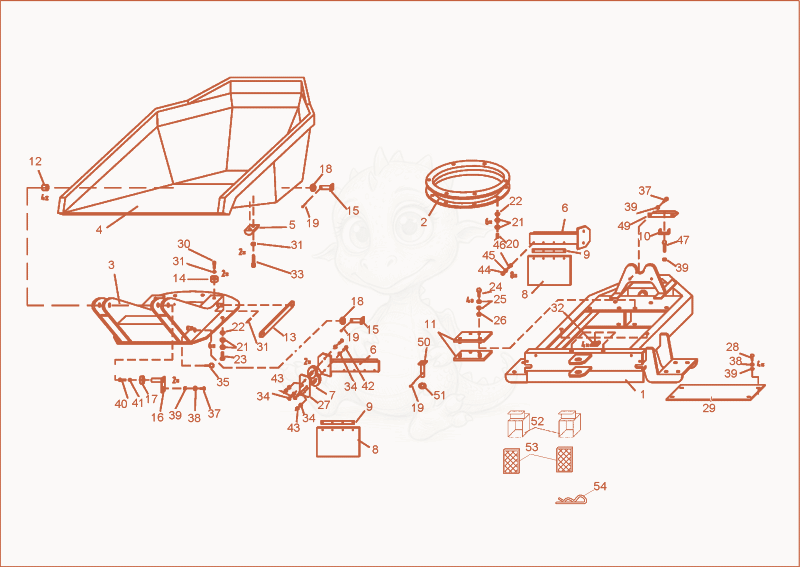

2000/3002 FRONT PART Diagram

Exploded parts diagram of the FRONT PART of a Wacker Neuson 2000/3002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000078009Not stocked
    front frame×1
  • 21000078268Not stocked
    slewing ring×1
  • 31000078007Not stocked
    swivel console×1
  • 41000078345Not stocked
    skip×1
  • 51000013321Not stocked
    swivel cantering×1
  • 61000078102Not stocked
    dust catch bracket×1
  • 71000004819Not stocked
    swing metal buffer×4
  • 81000065197Not stocked
    dust catch×2
  • 91000065198Not stocked
    fastener rail×2
  • 101000078107Not stocked
    bracket hose×1
  • 111000013359Not stocked
    bearing plate×2
  • 121000083236Not stocked
    dx bushing×4
  • 131000013357Not stocked
    maintenance support×1
  • 141000064951Not stocked
    bucket support×2
  • 151000013310Not stocked
    pin×2
  • 161000013375Not stocked
    bucket tilt pin×2
  • 171000013376Not stocked
    pin piece×2
  • 181000082664Not stocked
    washer×2
  • 191000085659
    $1.51
    cotterpin - 1000085659×2
  • 201000085440
    $1.68
    DIN933 M12x45 10.9 A2C - 1000085440×6
  • 211000015453Not stocked
    northlock disc×24
  • 221000082563
    $0.90
    HEXAGON NUT - 1000082563×12
  • 231000085439
    $10.46
    HEX SCREW - 1000085439×6
  • 241000085429
    $1.71
    HEX SCREW - 1000085429×6
  • 251000015451Not stocked
    northlock disc×12
  • 261000015423Not stocked
    hexagon nut×6
  • 271000078102Not stocked
    dust catch bracket×2
  • 281000085557
    $0.78
    flat head screw - 1000085557×4
  • 291000078216Not stocked
    fasten plate×1
  • 301000015422Not stocked
    hexagon nut×8
  • 311000082609
    $0.73
    lock washer - 1000082609×4
  • 321000082663Not stocked
    u-washer×4
  • 331000082240
    $1.58
    cheese head screw - 1000082240×2
  • 341000015437Not stocked
    lock washer×12
  • 351000015457Not stocked
    cotter pin×1
  • 361000085652
    $0.84
    cotter pin - 1000085652×1
  • 371000079385
    $0.85
    hex screw M8x30-8.8 A2C-DIN933 - 1000079385×4
  • 381000015448Not stocked
    washer×6
  • 391000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×9
  • 401000015343Not stocked
    hex screw×2
  • 411000015437Not stocked
    lock washer×2
  • 421000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 431000015407Not stocked
    hexagon nut×4
  • 441000085378
    $0.70
    hex screw - 1000085378×8
  • 451000082621
    $0.74
    spring washer - 1000082621×8
  • 461000085587
    $0.03
    HEXAGON NUT - 1000085587×8
  • 471000085317
    $0.97
    hex screw M8x55-8.8 A2C-DIN931 - 1000085317×1
  • 481000015475Not stocked
    grease nipple×1
  • 491000078215Not stocked
    angle f. front frame×1
  • 501000013304Not stocked
    slewing ram pin×2
  • 511000015440Not stocked
    u-washer×2
  • 521000098170Not stocked
    bracket headlight×2
  • 531000098174Not stocked
    light protection screen×2
  • 541000079417Not stocked
    plug×4
