SPARE PARTS LIST 2000/3002 SP

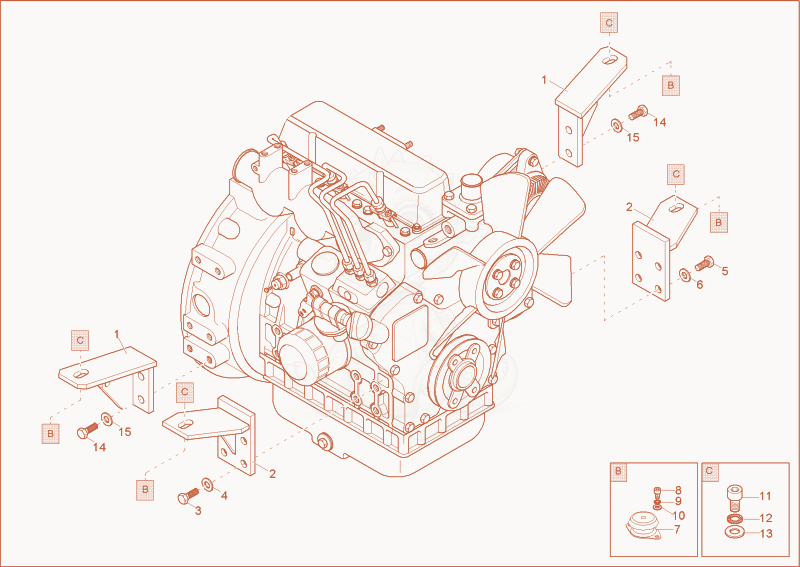

2000/3002 mounting bracket Diagram

Exploded parts diagram of the mounting bracket of a Wacker Neuson 2000/3002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000078094Not stocked
    engine console×1
  • 21000078095Not stocked
    engine console×1
  • 31000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 41000015438Not stocked
    lock washer×4
  • 51000015364Not stocked
    hex screw×4
  • 61000015438Not stocked
    lock washer×4
  • 71000001619Not stocked
    rubber buffer×4
  • 81000015389Not stocked
    cheese head screw×8
  • 91000015438Not stocked
    lock washer×8
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 111000082375
    $1.48
    HEX SCREW - 1000082375×4
  • 121000082609
    $0.73
    lock washer - 1000082609×8
  • 131000082638
    $0.73
    washer 13 -DIN134 - 1000082638×8
  • 141000019511Not stocked
    hex screw×4
  • 151000015438Not stocked
    lock washer×4
