SPARE PARTS LIST 2902RD Force SP

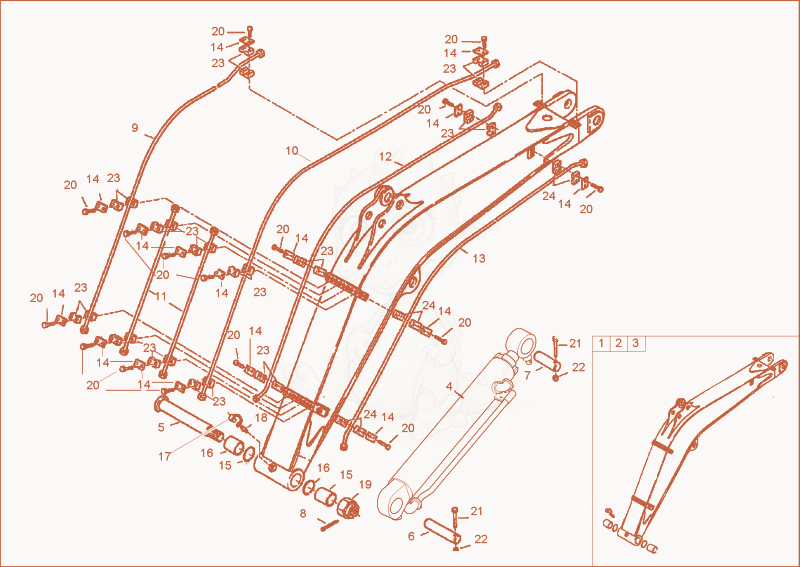

2902RDFORCE lift arm Diagram

Exploded parts diagram of the lift arm of a Wacker Neuson 2902RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069775Not stocked
    lift arm×1
  • 21000069776Not stocked
    lift arm×1
  • 31000167254Not stocked
    lift arm×1
  • 41000004687
    $1,961.45
    lifting arm cylinder - 1000004687×1
  • 51000019761Not stocked
    pin×1
  • 61000004652
    $66.30
    PIN - 1000004652×1
  • 71000069873
    $58.52
    PIN - 1000069873×1
  • 81000021603
    $0.88
    COTTERPIN - 1000021603×1
  • 91000093603Not stocked
    pipe line×1
  • 101000093604Not stocked
    pipe line×1
  • 111000093601Not stocked
    pipe line×1
  • 121000093605Not stocked
    pipe line×1
  • 131000093606Not stocked
    pipe line×1
  • 141000015627Not stocked
    cover plate×16
  • 151000019754Not stocked
    steel bushing×2
  • 161000095015
    $1.03
    lock ring - 1000095015×2
  • 171000015480Not stocked
    cap grease nipple×1
  • 181000015475Not stocked
    grease nipple×1
  • 191000015417
    $12.94
    DIN935-M36-8-A2C - 1000015417×1
  • 201000015366Not stocked
    hex screw×32
  • 211000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×2
  • 221000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 231000015632Not stocked
    clamp body×13
  • 241000022327Not stocked
    clamp body×3
