SPARE PARTS LIST 2902RD Force SP

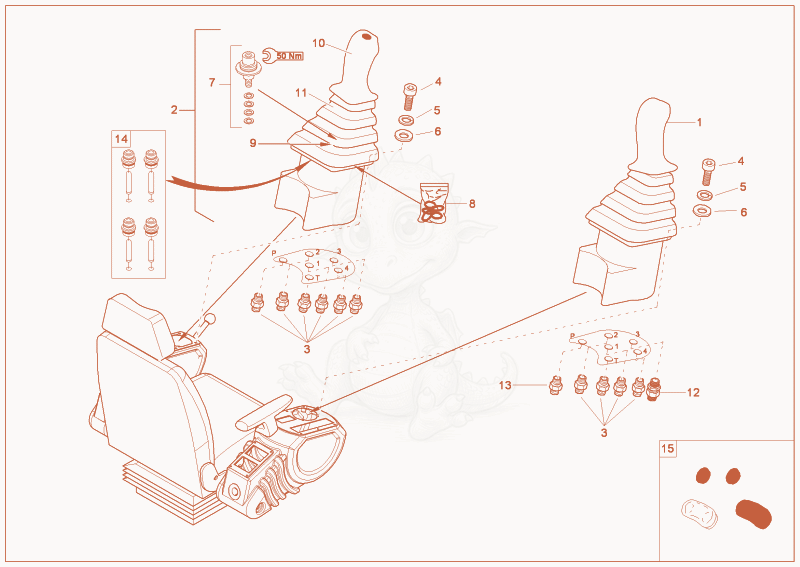

2902RDFORCE joystick Diagram

Exploded parts diagram of the joystick of a Wacker Neuson 2902RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000019418
    $475.07
    JOYSTICK - 1000019418×1
  • 21000019420
    $622.70
    JOYSTICK - 1000019420×1
  • 31000015488Not stocked
    screw joint×11
  • 41000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×8
  • 51000015436Not stocked
    lock washer×8
  • 61000015430Not stocked
    washer×4
  • 71000064799Not stocked
    cross union×2
  • 81000003050Not stocked
    seal kit joystick×2
  • 91000020929Not stocked
    cross union×2
  • 101000003018
    $796.52
    HANDLE - 1000003018×2
  • 111000003019Not stocked
    bellow×2
  • 121000015574Not stocked
    non return valve×1
  • 131000468097Not stocked
    filter×1
  • 141000021259Not stocked
    PLUNGER KIT×2
  • 151000019515Not stocked
    rubber cap set×2
