SPARE PARTS LIST 3501AA SP

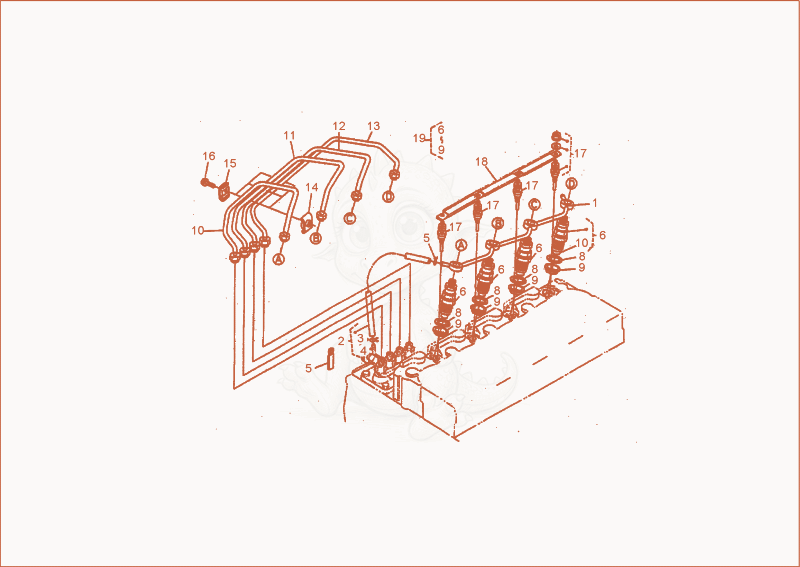

3501AA fuel injection equipment Diagram

Exploded parts diagram of the fuel injection equipment of a Wacker Neuson 3501AA, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000003646Not stocked
    pipe line×1
  • 21000085280Not stocked
    diesel pipe×1
  • 31000085265Not stocked
    seal ring×1
  • 41000085296Not stocked
    clamp strap×1
  • 51000085279Not stocked
    hose clamp×1
  • 61000075098Not stocked
    nozzle bracket×4
  • 71000075099Not stocked
    nozzle piece×4
  • 81000019029Not stocked
    seal ring×4
  • 91000085224
    $5.83
    ENGINE GASKET - 1000085224×4
  • 101000069159Not stocked
    injection line×1
  • 111000069160Not stocked
    injection line×1
  • 121000069161Not stocked
    injection line×1
  • 131000075100Not stocked
    injection line×1
  • 141000085274
    $5.06
    clamp shoe - 1000085274×3
  • 151000085275
    $3.09
    CLAMP SHOE - 1000085275×3
  • 161000085260Not stocked
    hex screw×3
  • 171000085232Not stocked
    glow plug×4
  • 181000085248Not stocked
    glow plug×1
  • 191000069166Not stocked
    injection nozzle×1
