SPARE PARTS LIST 3501AA SP

3501AA TRAVELLING GEAR INSTALLATION Diagram

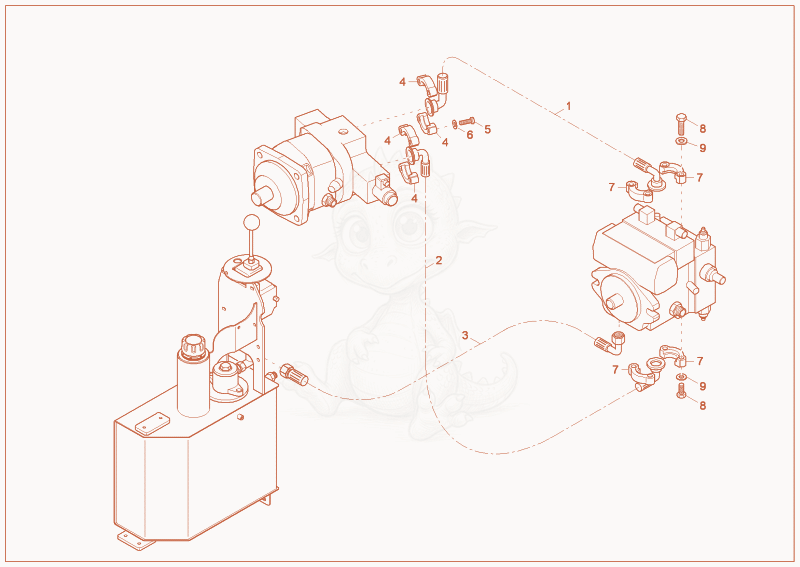

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION of a Wacker Neuson 3501AA, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077861Not stocked
    Hose×1
  • 21000077862Not stocked
    Hose×1
  • 31000077662Not stocked
    Hose×1
  • 41000065279
    $40.15
    FLANGE - 1000065279×4
  • 51000085476
    $1.13
    cheese head screw - 1000085476×8
  • 61000082609
    $0.73
    lock washer - 1000082609×8
  • 71000065278
    $12.43
    FLANGE - 1000065278×4
  • 81000048178Not stocked
    cheese head screw×8
  • 91000015438Not stocked
    lock washer×8
