WN Dumper 6001

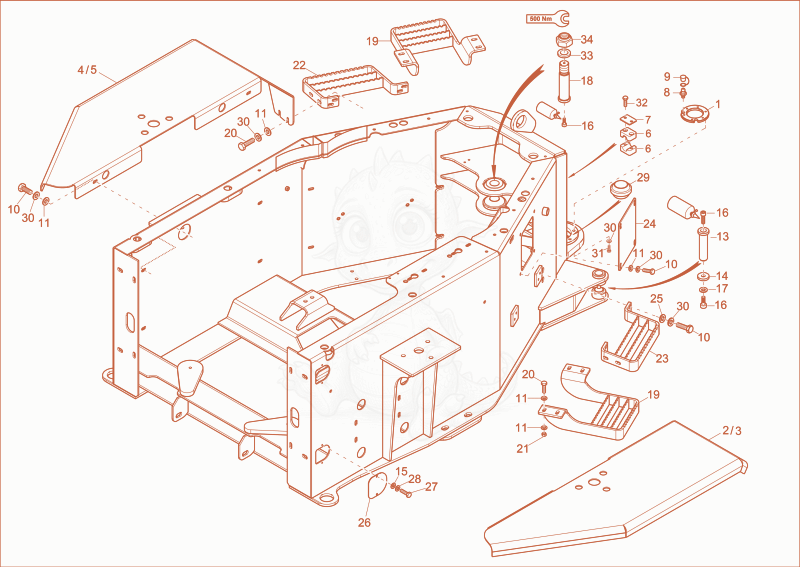

6001 REAR PART CHASSIS 1 Diagram

Exploded parts diagram of the REAR PART CHASSIS 1 of a Wacker Neuson 6001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000104141
    $215.14
    COVER - 1000104141×1
  • 21000185070
    $1,215.49
    Wheelcover 1000185070×1
  • 31000315561
    $516.09
    wheel cover - 1000315561×1
  • 41000185069
    $953.82
    WHEEL COVER - 1000185069×1
  • 51000315562
    $516.09
    wheel cover - 1000315562×1
  • 61000022327Not stocked
    clamp body×4
  • 71000015627Not stocked
    cover plate×2
  • 81000015476Not stocked
    grease nipple×1
  • 91000015480Not stocked
    cap grease nipple×1
  • 101000015364Not stocked
    hex screw×16
  • 111000094974
    $0.70
    washer M10-DIN134 - 1000094974×32
  • 121000015407Not stocked
    hexagon nut×4
  • 131000104131
    $96.03
    STEERING RAM PIN - 1000104131×1
  • 141000104143
    $9.01
    washer - 1000104143×1
  • 151000015430Not stocked
    washer×8
  • 161000015363Not stocked
    cheese head screw×3
  • 171000015439Not stocked
    lock washer×1
  • 181000335302
    $142.10
    PIN - 1000335302×1
  • 191000179104
    $202.03
    Footstep 1000179104×2
  • 201000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×12
  • 211000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×8
  • 221000179102
    $135.80
    Footstep 1000179102×1
  • 231000179103
    $135.26
    Footstep 1000179103×1
  • 241000167092
    $112.83
    COVER - 1000167092×1
  • 251000082678
    $1.36
    NORTHLOCK DISC - 1000082678×8
  • 261000178275
    $44.41
    COVER - 1000178275×4
  • 271000018400Not stocked
    hex screw×8
  • 281000015444Not stocked
    spring washer×8
  • 291000101487
    $120.60
    Pivotingbearing 1000101487×1
  • 301000015438Not stocked
    lock washer×20
  • 311000085504
    $1.05
    cheese head screw - 1000085504×6
  • 321000085311
    $0.73
    hex screw - 1000085311×4
  • 331000082626
    $1.61
    WASHER - 1000082626×1
  • 341000335554Not stocked
    hexagon nut×1
