WN Dumper 6001

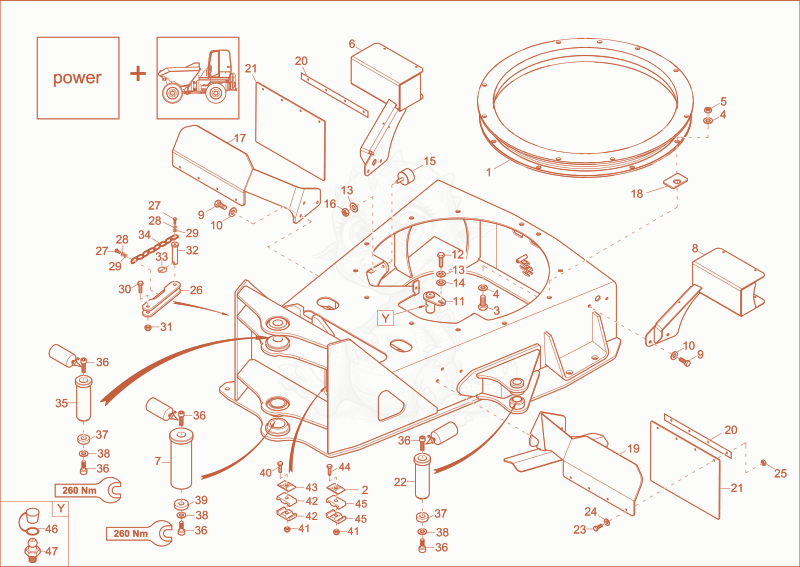

6001 FRONT PART CHÂSSIS (OPTION) Diagram
- Slewingring 1000253474×1
- 21000015629Not stockedcover plate×1
- HEX SCREW - 1000085429×12
- nordock washer NL16x30,7 - 1000094994×28
- 51000015423Not stockedhexagon nut×8
- Headlighthousing 1000104149×1
- Pin 1000104048×1
- Headlighthousing 1000104148×1
- 91000015364Not stockedhex screw×12
- 101000015438Not stockedlock washer×12
- 111000068325Not stockedslewing ram pin×2
- 121000013008Not stockedhex screw×2
- 131000015437Not stockedlock washer×12
- 141000015448Not stockedwasher×2
- 151000068315Not stockedswing metal buffer×2
- 161000015427Not stockedhexagon nut×2
- DUST CATCH BRACKET - 1000166857×1
- WASHER - 1000252801×8
- Dustcatchbracket 1000255316×1
- 201000001639Not stockedfastener rail×2
- 211000001638Not stockeddust catch×2
- STEERING RAM PIN - 1000104131×1
- cheese head screw - 1000082528×8
- spring washer - 1000082621×8
- HEXAGON NUT - 1000085587×8
- Bucklesupport 1000104145×1
- 271000018400Not stockedhex screw×2
- 281000015444Not stockedspring washer×2
- washer M6,4-DIN134 - 1000094966×2
- HEX SCREW - 1000130667×1
- 311000020788Not stockedhexagon nut×1
- PIN - 1000166858×1
- 331000015457Not stockedcotter pin×1
- CHAIN - 1000097224×0.3
- PIN - 1000335302×1
- 361000015363Not stockedcheese head screw×5
- washer - 1000104143×1
- 381000015439Not stockedlock washer×2
- end piece - 1000104049×1
- 401000018447Not stockedhex screw×4
- DIN985-M8-8-A2C - 1000015416×5
- clamp Body - 1000083285×8
- 431000022379Not stockedcover plate×4
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
- clamp 18/2 - 1000083300×2
- 461000015480Not stockedcap grease nipple×2
- 471000015475Not stockedgrease nipple×2
- 481000335554Not stockedhexagon nut×1
- WASHER - 1000082626×1
