WN Dumper 6001

6001 speed actuating Diagram

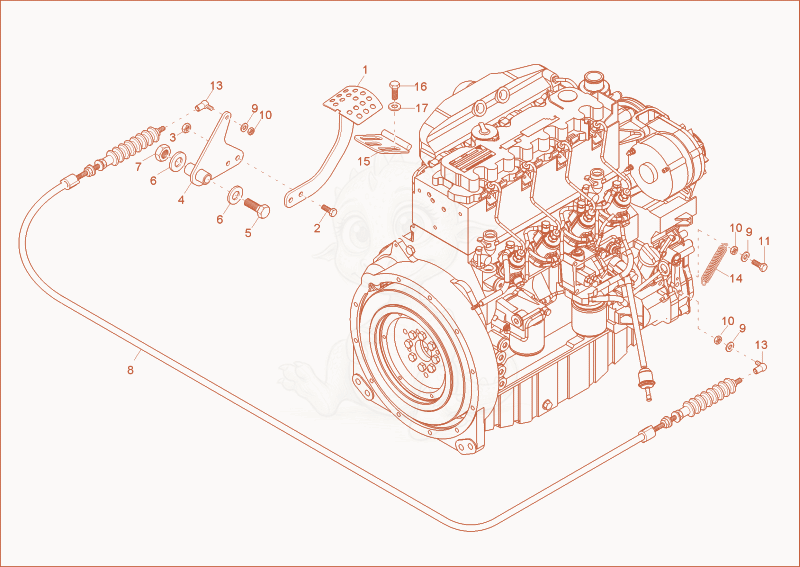

Exploded parts diagram of the speed actuating of a Wacker Neuson 6001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074928
    $60.66
    STEP PLATE - 1000074928×1
  • 21000015343Not stocked
    hex screw×2
  • 31000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 41000074927
    $17.93
    ACCELERATOR PEDAL - 1000074927×1
  • 51000085340
    $2.13
    hex screw - 1000085340×1
  • 61000082679
    $0.75
    Washer M16-DIN134 - 1000082679×2
  • 71000015423Not stocked
    hexagon nut×1
  • 81000065200Not stocked
    bowden cable×1
  • 91000015444Not stocked
    spring washer×2
  • 101000015405Not stocked
    hexagon nut×3
  • 111000018400Not stocked
    hex screw×1
  • 121000094974
    $0.70
    washer M10-DIN134 - 1000094974×1
  • 131000015636Not stocked
    ball and socket×2
  • 141000003252Not stocked
    tension spring×1
  • 151000253142
    $40.36
    Throttle Stop - 1000253142×1
  • 161000015364Not stocked
    hex screw×1
  • 171000015438Not stocked
    lock washer×1
