Neuson 8002RD

8002RD WIRE HARNESS 3 Diagram

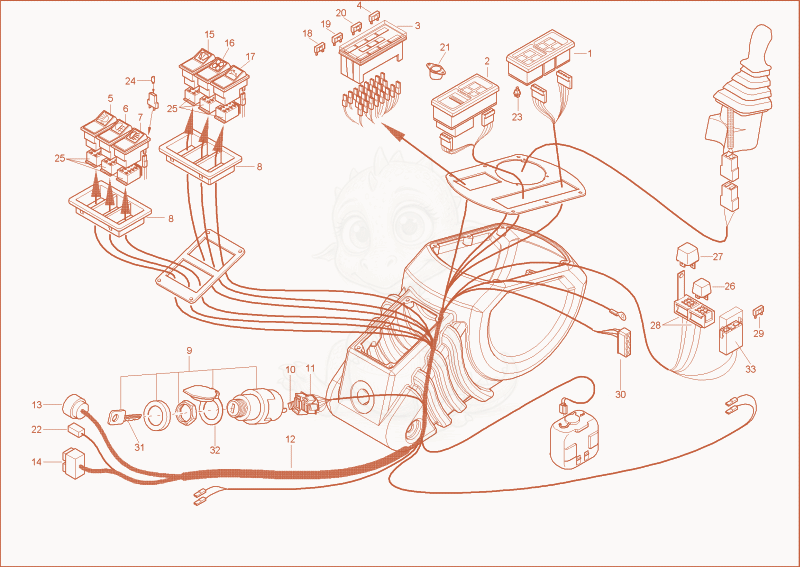

Exploded parts diagram of the WIRE HARNESS 3 of a Wacker Neuson 8002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000004673Not stocked
    indicator instrument×1
  • 21000003876Not stocked
    indicator instrument×1
  • 31000001534Not stocked
    fuse box×1
  • 41000085683
    $0.55
    FUSE - 1000085683×6
  • 51000022521Not stocked
    switch×1
  • 61000022522Not stocked
    switch rear light×1
  • 71000015295Not stocked
    switch×1
  • 81000027147Not stocked
    switch frame×2
  • 91000184001
    $125.82
    Ignition lock-R-1000125516 - 1000184001×1
  • 101000027368Not stocked
    central plug×1
  • 111000027386
    $6.47
    PLUG - 1000027386×1
  • 121000022672Not stocked
    wiring harness armrest×1
  • 131000081979Not stocked
    bushing housing×1
  • 141000082031Not stocked
    bushing housing×1
  • 151000019919Not stocked
    switch wiper×1
  • 161000015294Not stocked
    switch heater×1
  • 171000081700Not stocked
    switch accelerated speed×1
  • 181000095374
    $0.85
    fuse - 1000095374×3
  • 191000085682
    $0.43
    fuse - 1000085682×1
  • 201000081695
    $0.52
    FUSE - 1000081695×1
  • 211000015291Not stocked
    signal×1
  • 221000100085Not stocked
    plug×1
  • 231000015314
    $7.74
    TELLTALE - 1000015314×1
  • 241000015314
    $7.74
    TELLTALE - 1000015314×1
  • 251000095327Not stocked
    switch plug×3
  • 261000015315Not stocked
    relay×1
  • 271000015315Not stocked
    relay×1
  • 281000081710Not stocked
    sockets×2
  • 291000015302
    $3.50
    fuse - 1000015302×1
  • 301000000479Not stocked
    plug sleeve housing×1
  • 311000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 321000081684
    $9.74
    cover ignition lock - 1000081684×1
  • 331000027186
    $10.05
    Bracket - 1000027186×1
