Neuson 8002RD

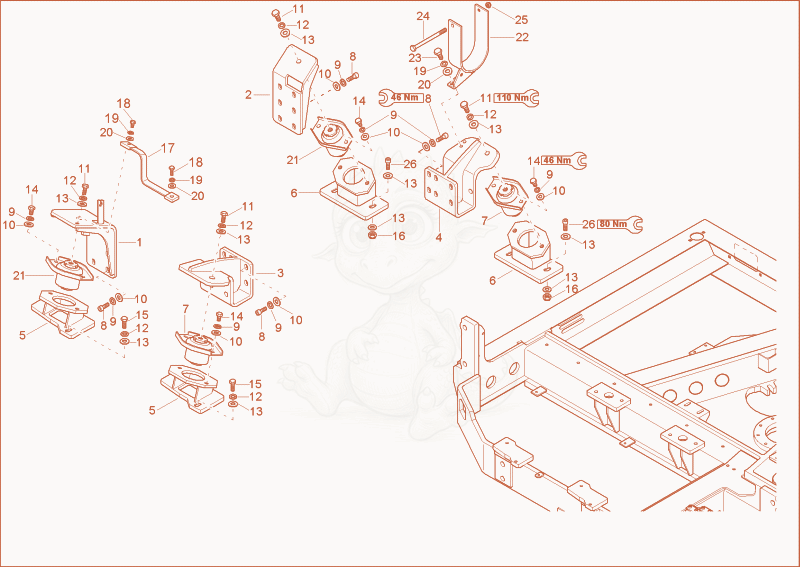

8002RD Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson 8002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000094571Not stocked
    mounting bracket×1
  • 21000094572Not stocked
    mounting bracket×1
  • 31000075640Not stocked
    mounting bracket×1
  • 41000075641Not stocked
    mounting bracket×1
  • 51000075636Not stocked
    engine console×2
  • 61000075637Not stocked
    engine console×2
  • 71000012361Not stocked
    hydro.bearing×2
  • 81000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×23
  • 91000015438Not stocked
    lock washer×31
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×31
  • 111000015381Not stocked
    hex screw×4
  • 121000082609
    $0.73
    lock washer - 1000082609×8
  • 131000085610
    $0.43
    WASHER - 1000085610×66
  • 141000013009Not stocked
    hex screw×8
  • 151000015372Not stocked
    hex screw×4
  • 161000020127Not stocked
    hexagon nut×4
  • 171000069009Not stocked
    earth strap×1
  • 181000019136Not stocked
    hex screw×2
  • 191000015437Not stocked
    lock washer×4
  • 201000013027Not stocked
    washer×4
  • 211000019884Not stocked
    hydro.bearing×2
  • 221000075645Not stocked
    bracket suction hose×1
  • 231000013008Not stocked
    hex screw×2
  • 241000085323
    $0.17
    hex screw - 1000085323×1
  • 251000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 261000085513
    $1.36
    CHEESE HEAD SCREWS - 1000085513×4
