WN Dumper 9001

9001 coupling Diagram

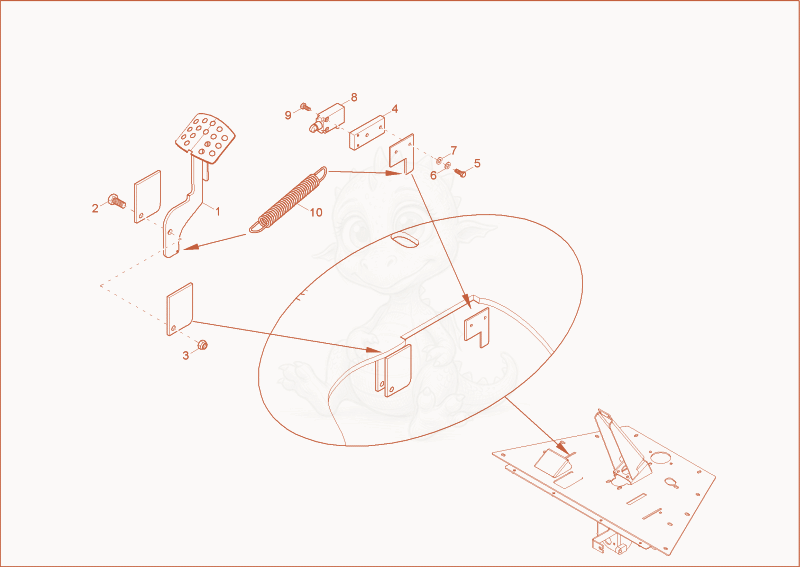

Exploded parts diagram of the coupling of a Wacker Neuson 9001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000106637Not stocked
    clutch pedal×1
  • 21000085391
    $0.91
    hex screw - 1000085391×1
  • 31000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 41000064917Not stocked
    gaspedal switch plate×1
  • 51000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 61000015444Not stocked
    spring washer×2
  • 71000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 81000164851Not stocked
    switch×1
  • 91000085552
    $1.18
    ovalhead screw - 1000085552×2
  • 101000003252Not stocked
    tension spring×1
