WN Dumper 9001

9001 steering cylinder Diagram

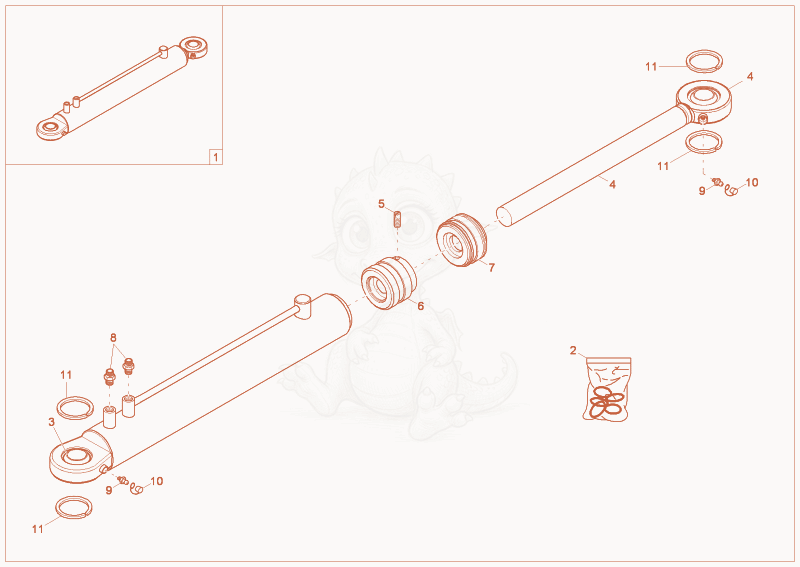

Exploded parts diagram of the steering cylinder of a Wacker Neuson 9001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000101485
    $1,555.82
    X-1000174243 STEERING CYLINDER - 1000101485×1
  • 21000113426
    $57.21
    SEAL KIT STEERING CYL. - 1000113426×1
  • 31000113423
    $51.66
    PIVOTING BEARING - 1000113423×2
  • 41000113427
    $330.35
    PISTON ROD - 1000113427×1
  • 51000015374Not stocked
    thread pin×1
  • 61000113424
    $85.70
    PISTON - 1000113424×1
  • 71000113425
    $90.72
    GUIDE BUSH - 1000113425×1
  • 81000085053
    $2.82
    GE12LMEDOMDA3C - 1000085053×2
  • 91000015476Not stocked
    grease nipple×2
  • 101000079457
    $2.40
    protecting cap - 1000079457×2
  • 111000000628Not stocked
    lock ring×4
