AP1550R

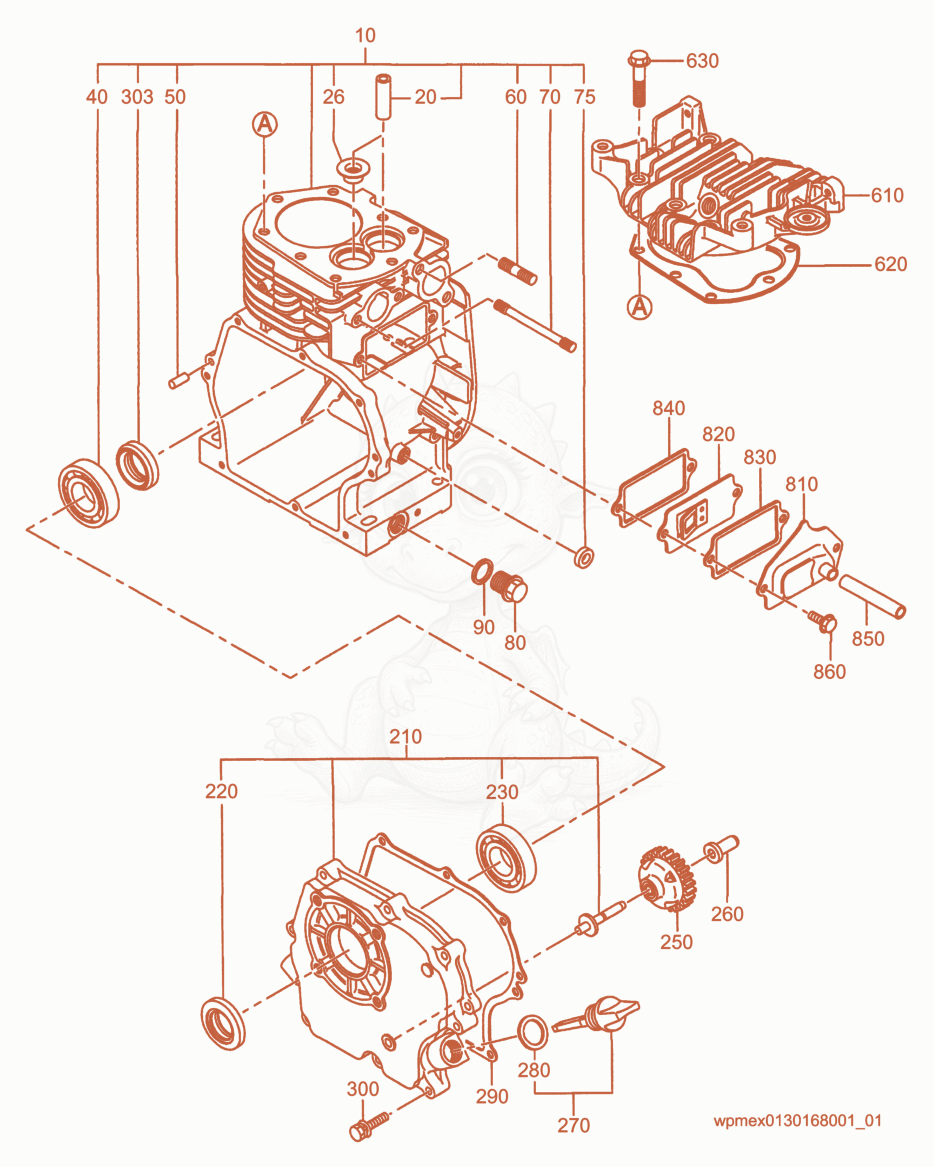

AP1550R Crankcase Diagram
- crankcase - 5000205567×1
- VALVE-GUIDE - 5000205569×2
- CLIP - 5000205570×1
- SEAL-INTAKE VALVE - 5000205571×1
- RETAINER-PLATE - 5000205572×1
- SEAL-SHAFT 25 X 41.24 X 7 - 5000077392×1
- BEARING-RADIAL BALL,6207 - 5000052062×1
- BEARING-BALL - 5000205573×1
- PIN-DOWEL TYPE - 5000053598×2
- STUD 5/16-18 X 1-1/8 - 5000075214×2
- STUD - 5000205574×2
- SEAL-OIL - 5000158351×1
- PLUG-OIL - 5000117215×2
- SEAL-RING - 5000029327×2
- COVER-BEARING,MAIN - 5000205575×1
- SEAL-SHAFT 35 X 48 X 8,5B - 5000075294×1
- BEARING-RADIAL BALL,6207 - 5000052062×1
- BEARING-BALL - 5000205573×1
- GOVERNOR-GEAR - 5000205576×1
- SLEEVE-ENGINE GOVERNOR - 5000029436×1
- GAUGE-OIL - 5000203776×2
- GASKET - 5000156570×2
- GASKET-CRANKCASE - 5000151180×1
- BOLT-FLANGE - 5000205579×7
- cylinder head - 5000205580×1
- GASKET-HEAD - 5000205581×1
- BOLT-FLANGE - 5000205582×4
- COVER-ROCKER - 5000205583×1
- GASKET-ROCKET COVER - 5000203777×1
- PIN-DOWEL TYPE - 5000053598×2
- BOLT-FLANGE - 5000156531×4
- VALVE-LEAF - 5000205584×1
- RETAINER-PLATE - 5000205585×1
- BOLT-FLANGE - 5000156645×1
