AP1550R

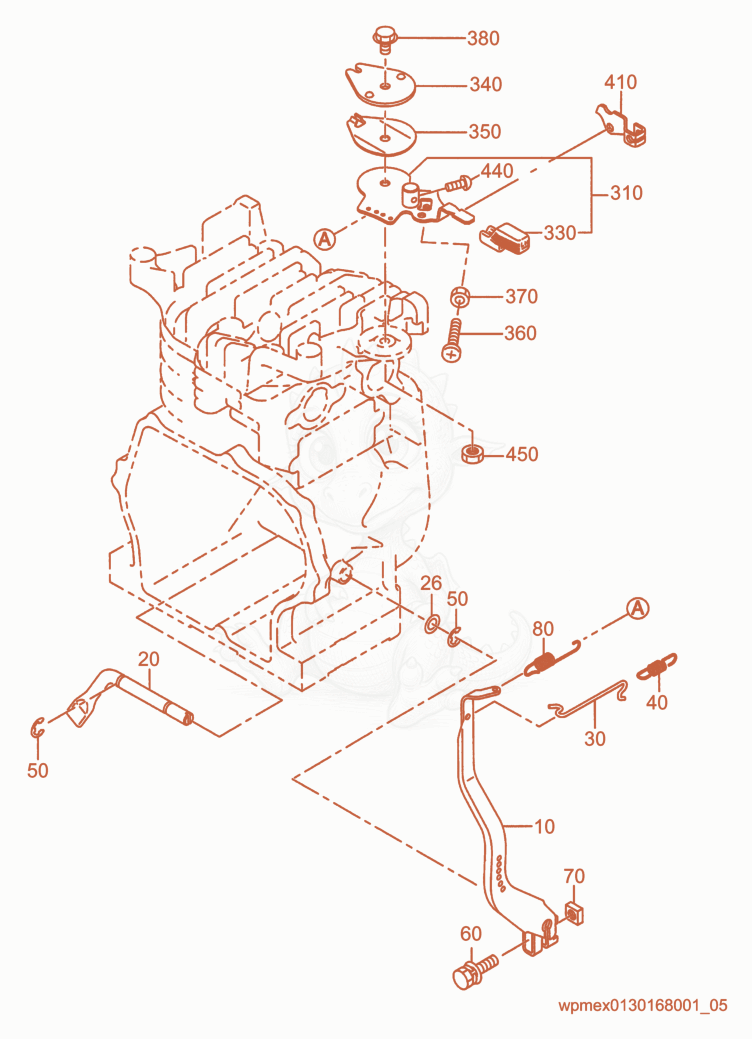

AP1550R Governor Diagram
- LEVER-GOVERNOR - 5000151189×1
- SHAFT-GOVERNOR - 5000117247×1
- Washer - 5000118042×1
- ROD-GOVERNOR CONTROL - 5000053640×1
- SPRING-GOVERNOR CONTROL ROD - 5000053641×1
- RET.RING-EXT 6MM,E-TYP - 5000053639×2
- BOLT W/WASHER - 5000156107×1
- nut - 5000156108×1
- SPRING-GOVERNOR CONTROL - 5000054777×1
- LEVER-THROTTLE CONTROL - 5000158369×1
- KNOB - 5000053645×1
- PLATE-STOP - 5000088466×1
- WASHER-LOCK - 5000053646×1
- SCREW M6 X 30,PAN.HD. - 5000053649×1
- NUT M6,HEX - 5000053650×1
- BOLT-FLANGE - 5000156503×1
- Bracket - 5000158370×1
- screw - 5000156519×1
- NUT M6,HEX - 5000053650×1
