Wacker Neuson PartsGENUINE OEM PARTS

APT4T Pump, Surge Brake, Cold Weather

APT4TCW Cylinder Block Diagram

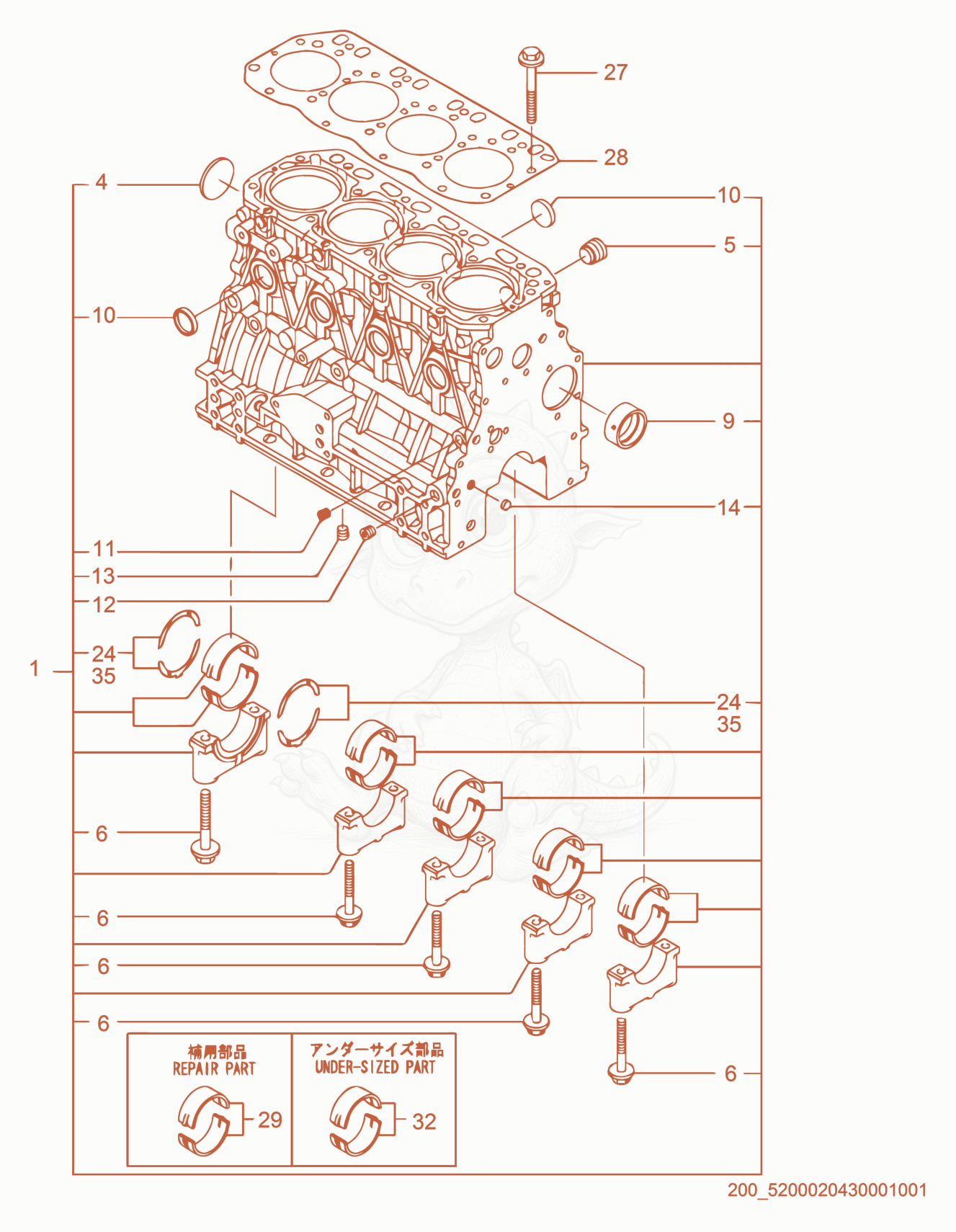

Exploded parts diagram of the Cylinder Block of a Wacker Neuson APT4TCW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200019766Not stocked
    Cylinder block cpl.×1
  • 45200019767Not stocked
    Plug×1
  • 55200019768Not stocked
    Plug×1
  • 65200019830Not stocked
    Bolt×10
  • 95200019831Not stocked
    Bushing×1
  • 105200019832Not stocked
    Plug×8
  • 115200019833Not stocked
    Plug×1
  • 125200019834Not stocked
    Plug×3
  • 145200019835Not stocked
    Plug×2
  • 245200019836Not stocked
    Bearing×2
  • 275200019841Not stocked
    Bolt×18
  • 285200019842Not stocked
    Cylinder head gasket×1
  • 295200019843Not stocked
    Bearing×5
  • 325200019844Not stocked
    Bearing×5
  • 355200019845Not stocked
    Bearing×1
