APT4T Pump, Surge Brake, Cold Weather

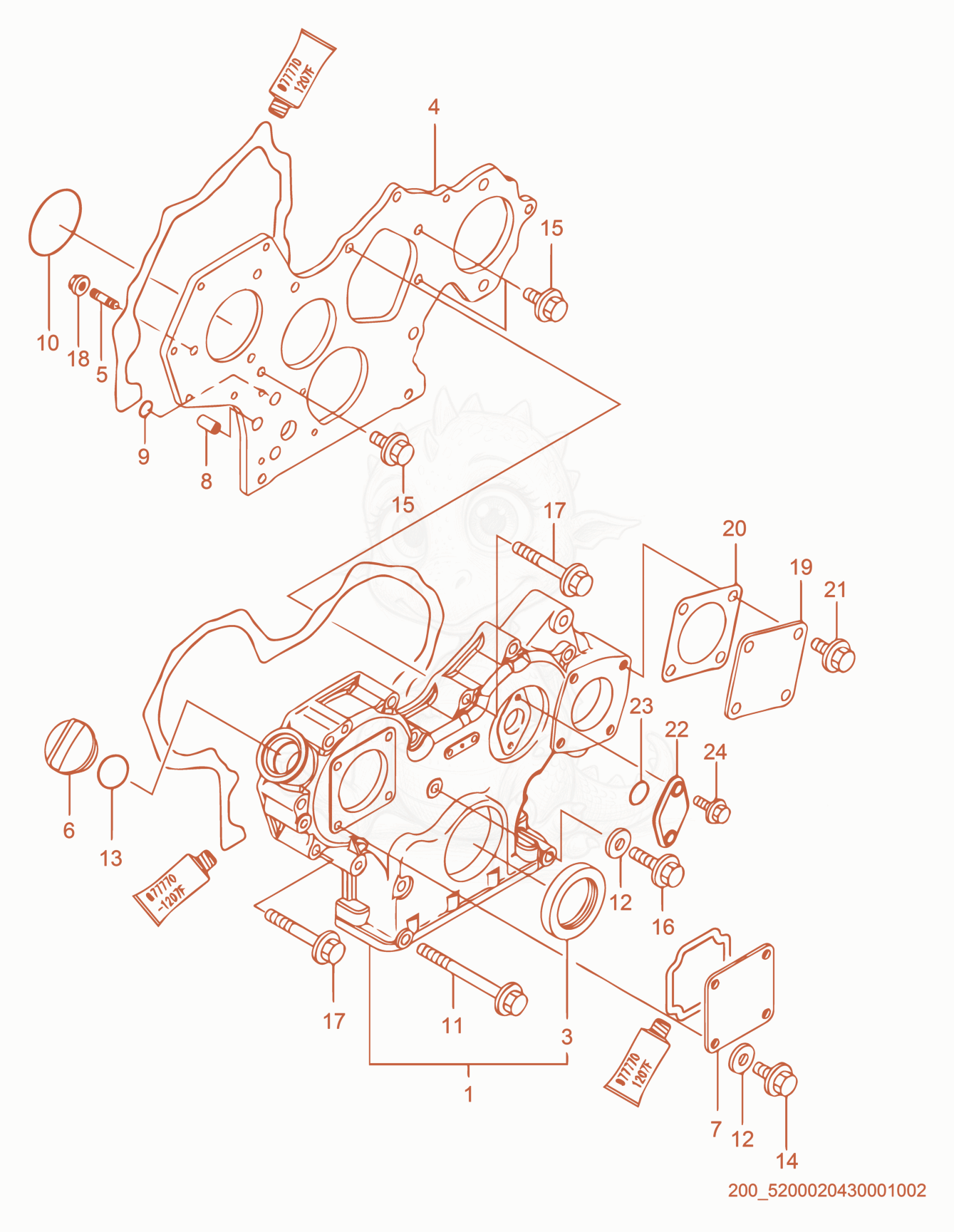

APT4TCW Gear Housing Diagram

Exploded parts diagram of the Gear Housing of a Wacker Neuson APT4TCW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200019849Not stocked
    Gear case cpl.×1
  • 35200019851Not stocked
    Oil seal×1
  • 45200019852Not stocked
    Gear case cpl.×1
  • 55200019853Not stocked
    Stud×3
  • 65200019854Not stocked
    Cover×1
  • 75200019855Not stocked
    Cover×1
  • 85200019856Not stocked
    Pipe×2
  • 95200019857Not stocked
    O-Ring×2
  • 105200019858Not stocked
    O-Ring×1
  • 115200019859Not stocked
    Bolt×3
  • 125200019860Not stocked
    Seal×5
  • 135200019861Not stocked
    O-Ring×1
  • 165200019862Not stocked
    Hexagonal flange head screw×1
  • 175200019863Not stocked
    Hexagonal flange head screw×10
  • 185000153995
    $1.64
    nut - 5000153995×3
  • 195200019855Not stocked
    Cover×1
  • 205200019865Not stocked
    Gasket×1
  • 215200019866Not stocked
    Hexagonal flange head screw×4
  • 225200019864Not stocked
    Cover×1
  • 235200019867Not stocked
    O-Ring×1
  • 245200019866Not stocked
    Hexagonal flange head screw×2
