ARCTIC BEAR HD, DIESEL

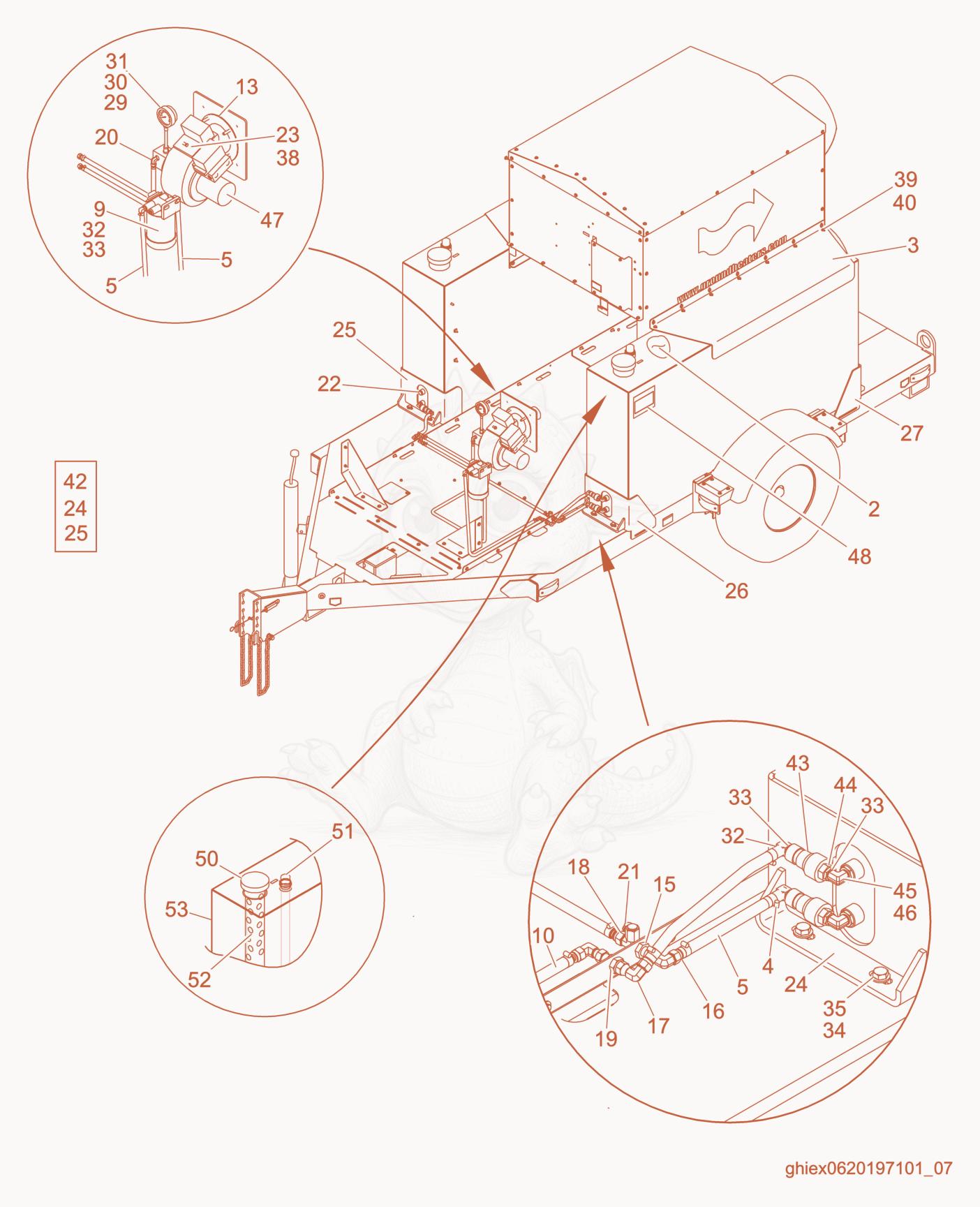

ARCTICBEARHD Diesel Option cpl. Diagram
- 25000169819Not stockedFuel tank×2
- 35000167520Not stockedFuel tank×2
- 45000168334Not stockedClamp×14
- 55000169417Not stockedHose×5
- 95000168681Not stockedFilter-fuel×1
- 135000169807Not stockedAdapter plate×1
- 155000168842Not stockedLock nut×3
- 165000168835Not stockedSwivel×9
- 175000168836Not stockedElbow×5
- 185000168837Not stockedTee-fitting×2
- 195000168838Not stockedBulkhead fitting×1
- 205000168839Not stockedElbow×1
- 215000168840Not stockedCap×1
- 225000168841Not stockedPlug×1
- 235000170111Not stockedBurner×1
- 245000167514Not stockedCover×1
- 255000167516Not stockedCover×1
- 265000169817Not stockedFuel tank×2
- 275000169818Not stockedFuel tank×2
- 285000166273Not stockedFuel tank cpl.×2
- 295000168738Not stockedReducer coupling×1
- 305000168739Not stockedNipple fitting×1
- 315000168731Not stockedGauge-fuel×1
- 325000168279Not stockedBarbed hose fitting×5
- 335000168034Not stockedBushing×8
- 345000167728Not stockedFlat washer×16
- 355000167699Not stockedBolt×8
- 395000167806Not stockedFender washer×29
- 405000167704Not stockedBolt×30
- 425000170383Not stockedWiring harness×1
- 435000168010Not stockedQuick coupler×3
- 445000168012Not stockedQuick coupler×3
- 455000168418Not stockedElbow×3
- 465000168458Not stockedBushing×3
- 475000170488Not stockedAdapter×1
- 485000168045Not stockedLabel-diesel fuel selection×1
- 505000167541Not stockedTube×1
- 515000168865Not stockedFuel gauge×1
- 525000167541Not stockedTube×1
- 535000169843Not stockedFuel tank×1
- 11105100036673Not stockedGauge×1
