ARCTIC BEAR HD, DIESEL

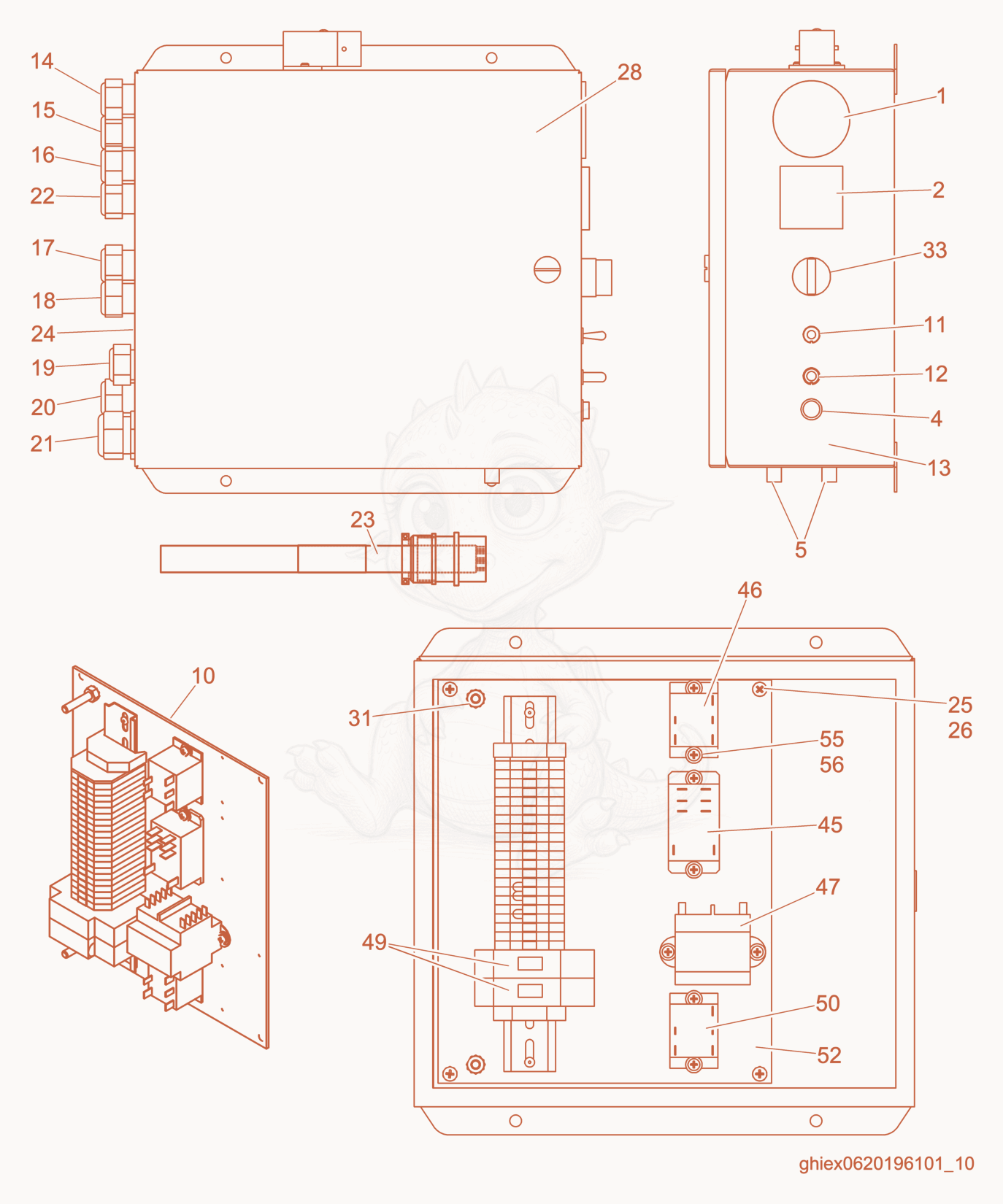

ARCTICBEARHD Control Panel cpl. Diagram

Exploded parts diagram of the Control Panel cpl. of a Wacker Neuson ARCTICBEARHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000166483Not stocked
    Hour meter×1
  • 25000166804Not stocked
    Temperature control×1
  • 45000166689Not stocked
    Light×1
  • 55000170158Not stocked
    Circuit breaker×2
  • 105000166257Not stocked
    Back panel cpl.×1
  • 125000166484Not stocked
    Switch×1
  • 145000166259Not stocked
    Cable cpl., receptacle×1
  • 155000166264Not stocked
    Cable cpl., light×1
  • 165000166265Not stocked
    Cable cpl., VFD×1
  • 175000166267Not stocked
    Cable cpl.×1
  • 185000166266Not stocked
    Cable cpl.×1
  • 195000166271Not stocked
    Cable, burner power×1
  • 205000166261Not stocked
    Power cable×1
  • 215000166262Not stocked
    Cable cpl., main power 1×1
  • 225000166268Not stocked
    Cable cpl., thermocouple×1
  • 235000166272Not stocked
    Cable cpl., burner×1
  • 245000168467Not stocked
    Plug×2
  • 255000170134Not stocked
    Washer-lock×4
  • 265000170133Not stocked
    Screw×4
  • 285000169808Not stocked
    Control panel×1
  • 315000167690Not stocked
    Nut×4
  • 455000170157Not stocked
    Relay×1
  • 465000166694Not stocked
    Relay×1
  • 475000170162Not stocked
    Transformer×1
  • 495000170161Not stocked
    Fuse×2
  • 505000170160Not stocked
    Relay×1
  • 525000170148Not stocked
    Back panel×1
  • 555000167810Not stocked
    Flat washer×8
  • 565000167888Not stocked
    Lock washer×8
