HI770XHD Indirect Heater

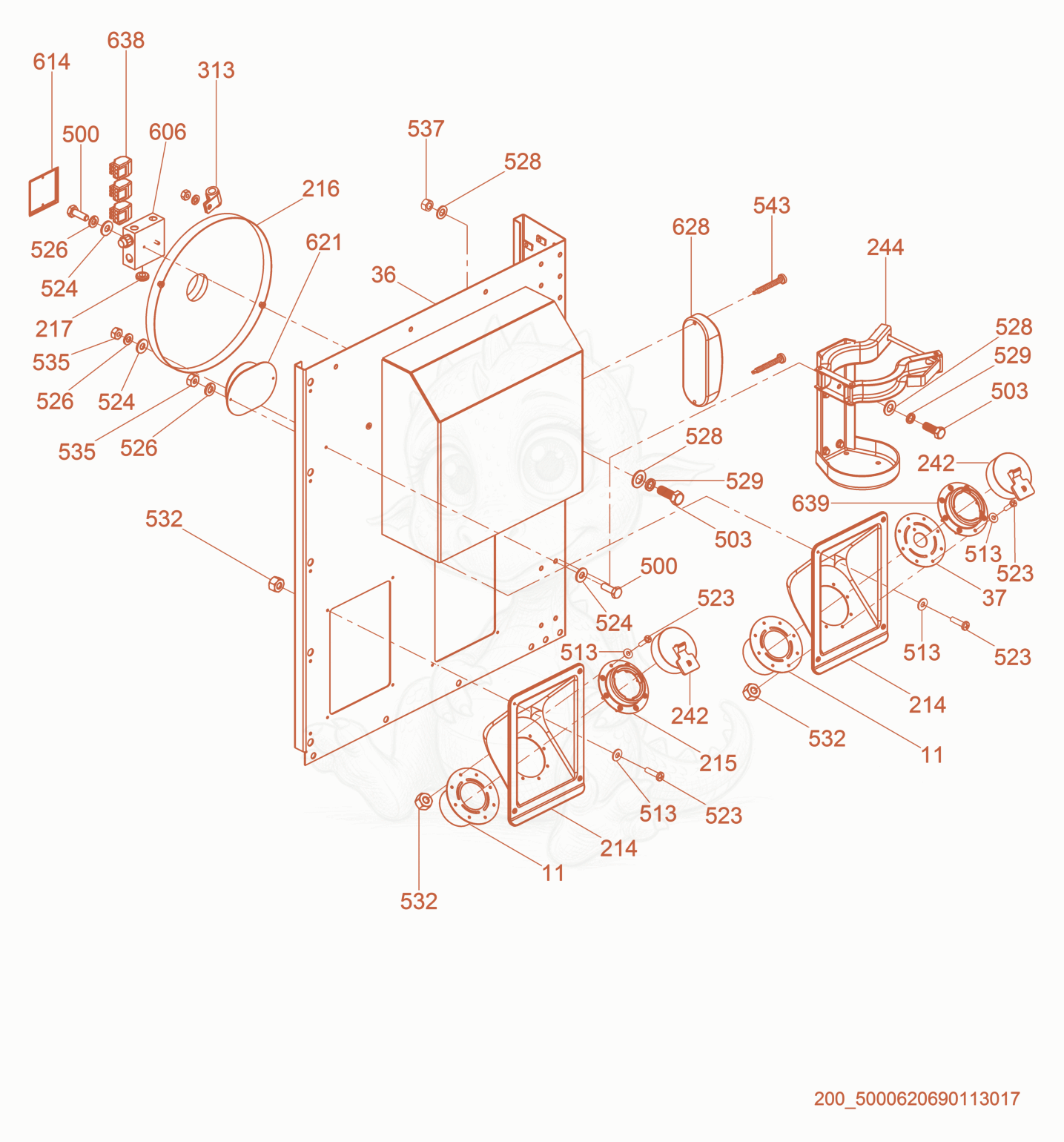

ARCTICBEARXHDNS Enclosure Panels Diagram
- Lift Eye Weldment P-5000112006 - 5000183050×1
- 115000177986Not stockedFiller tube×1
- Spacer P-5000112006 - 5000183058×1
- 365200003800Not stockedRear left side panel×1
- 375000177983Not stockedPlate×1
- Door-Left Side,Rear P-5000112006 - 5000183066×1
- Door-Left Side,Front P-5000112006 - 5000183067×1
- 2105000168686Not stockedHatch holder×2
- PORT-FUEL FILL - 5000171136×2
- TUBE-FUEL CAP ADAPTOR P- 5000112007 - 5000171487×2
- 2185000170406Not stockedHinge×1
- 2305000170416Not stockedPlug×2
- 2325000168521Not stockedSpring×2
- 2335000170446Not stockedLatch×1
- CAP-FUEL FILL - 5000171137×2
- 2445000178143Not stockedBracket×1
- 5005000167704Not stockedBolt×7
- 5035000167705Not stockedBolt×25
- 5055000167750Not stockedBolt×5
- 5135000167709Not stockedScrew×40
- 5215000167857Not stockedScrew×5
- 5235000167788Not stockedFlat washer×40
- 5245000167729Not stockedFlat washer×22
- 5265000167733Not stockedLock washer×2
- 5285000167730Not stockedFlat washer×35
- 5295000167735Not stockedLock washer×25
- 5325000167688Not stockedNut×36
- 5325000167788Not stockedFlat washer×47
- 5345000167767Not stockedNut×5
- 5355000167690Not stockedNut×7
- 5365000167778Not stockedNut×4
- 6215000166730Not stockedLight×2
