HI770XHD Indirect Heater

ARCTICBEARXHDNS Roof Panel Diagram

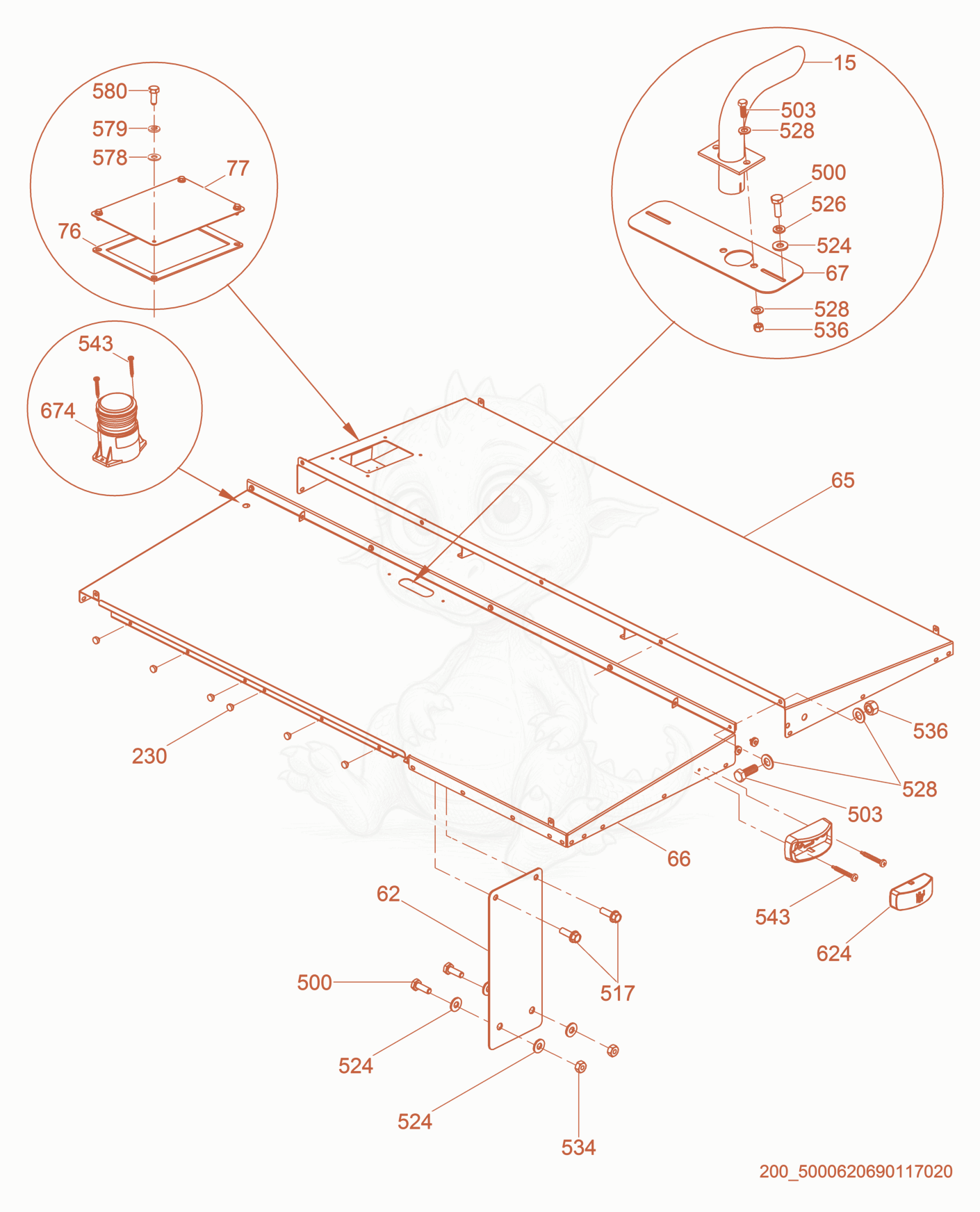

Exploded parts diagram of the Roof Panel of a Wacker Neuson ARCTICBEARXHDNS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 155000169727Not stocked
    Exhaust pipe×1
  • 275000183057
    $111.17
    Brace-Roof P-5000112006 - 5000183057×1
  • 625000167430Not stocked
    Plate×1
  • 655100018442Not stocked
    Roof panel×1
  • 665000183069
    $895.64
    Panel-Roof,Left P-5000112006 - 5000183069×1
  • 675000183062
    $31.77
    Adapter-Engine Exhaust P-5000112006 - 5000183062×1
  • 765200020090Not stocked
    Seal×1
  • 775200020089Not stocked
    Rear roof panel×1
  • 2305000170416Not stocked
    Plug×6
  • 5005000167704Not stocked
    Bolt×4
  • 5035000167705Not stocked
    Bolt×15
  • 5175000167793Not stocked
    Screw×2
  • 5245000167729Not stocked
    Flat washer×4
  • 5265000167733Not stocked
    Lock washer×2
  • 5285000167730Not stocked
    Flat washer×20
  • 5345000167767Not stocked
    Nut×2
  • 5365000167778Not stocked
    Nut×5
  • 5435000178194Not stocked
    Screw×4
  • 5785000192393Not stocked
    Flat washer×4
  • 5795000173965Not stocked
    Lock washer×4
  • 5805000173985Not stocked
    Hexagonal head cap screw×4
  • 6245000166433Not stocked
    Light×1
  • 6745000177940Not stocked
    Strobe light×1
