ARS90e

ARS90E Protective frame Diagram

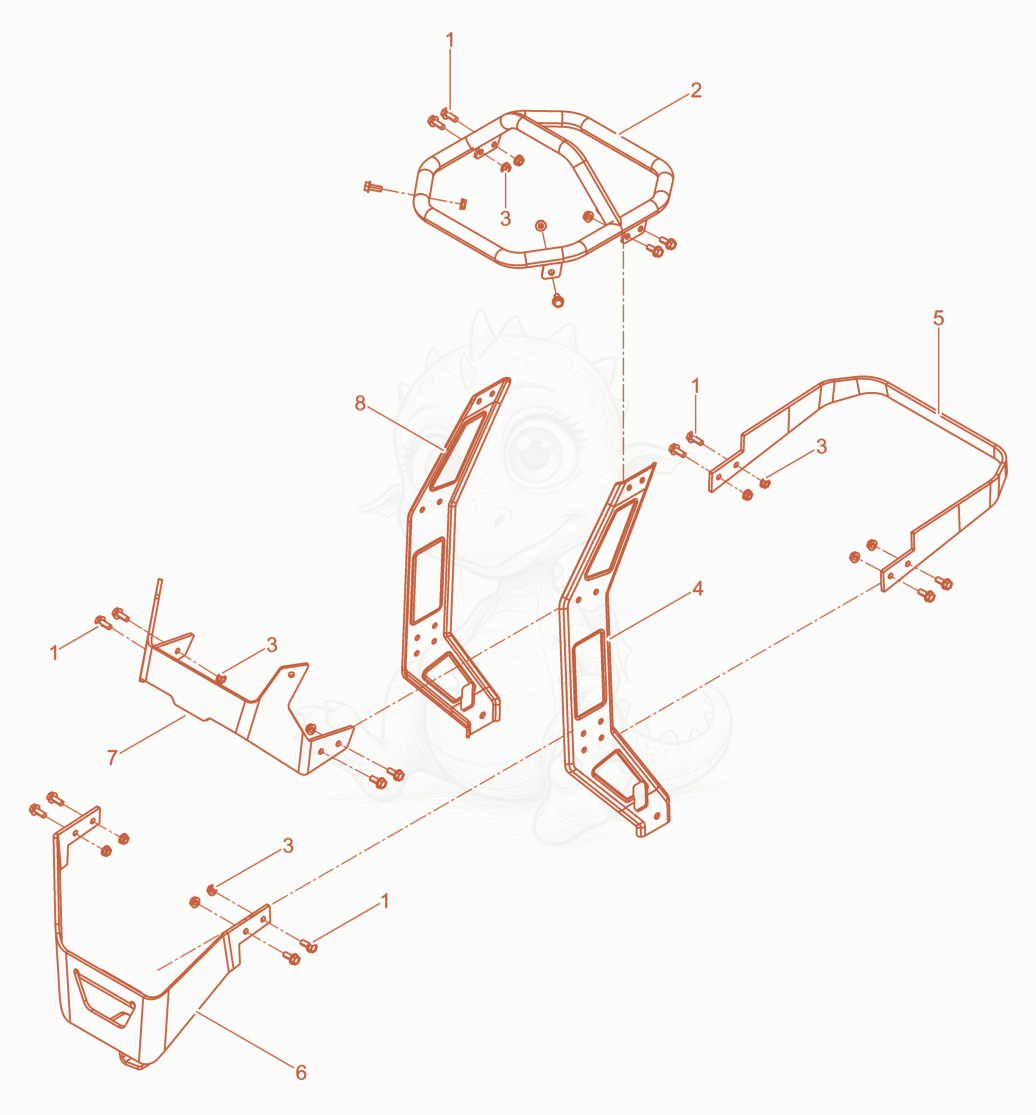

Exploded parts diagram of the Protective frame of a Wacker Neuson ARS90E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066196Not stocked
    Hexagonal head cap screw×18
  • 25100066199Not stocked
    Guide Handle×1
  • 35100066211Not stocked
    Hexagon nut×18
  • 45100066223Not stocked
    Brace left×1
  • 55100066235Not stocked
    Plate rear×1
  • 65100066247Not stocked
    Front panel×1
  • 75100066254Not stocked
    Plate front×1
  • 85100066255Not stocked
    Brace right×1
