ARS90E Upper Mass Diagram

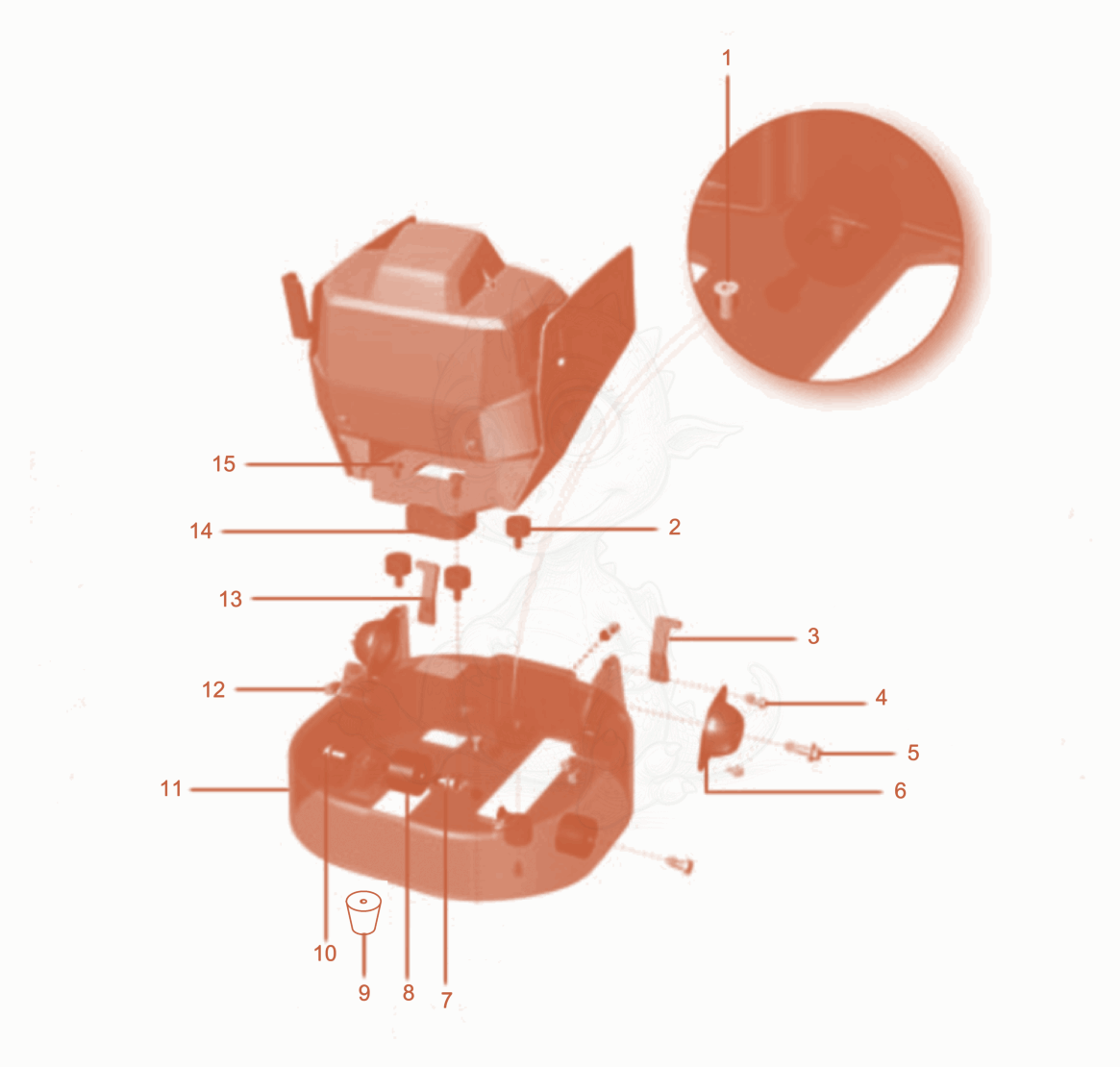

Exploded parts diagram of the Upper Mass of a Wacker Neuson ARS90E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066656Not stocked
    Screw M8x16×1
  • 25100071811Not stocked
    Shockmount×4
  • 35100066209Not stocked
    Angle left×1
  • 45100066212Not stocked
    Hexagonal head cap screw×4
  • 55100066213Not stocked
    Hexagonal head cap screw×2
  • 65100066210Not stocked
    Shockmount×2
  • 75100066221Not stocked
    Hexagonal head cap screw×1
  • 85100066205Not stocked
    Shockmount×2
  • 95100085674Not stocked
    Shockmount×1
  • 105100066213Not stocked
    Hexagonal head cap screw×1
  • 115100071812Not stocked
    Engine Support×1
  • 125100071808Not stocked
    Hexagonal head cap screw×4
  • 135100066203Not stocked
    Angle right×1
  • 145100071813Not stocked
    Cable passage×1
  • 155100071810Not stocked
    Hexagonal head cap screw×4
