AS30e

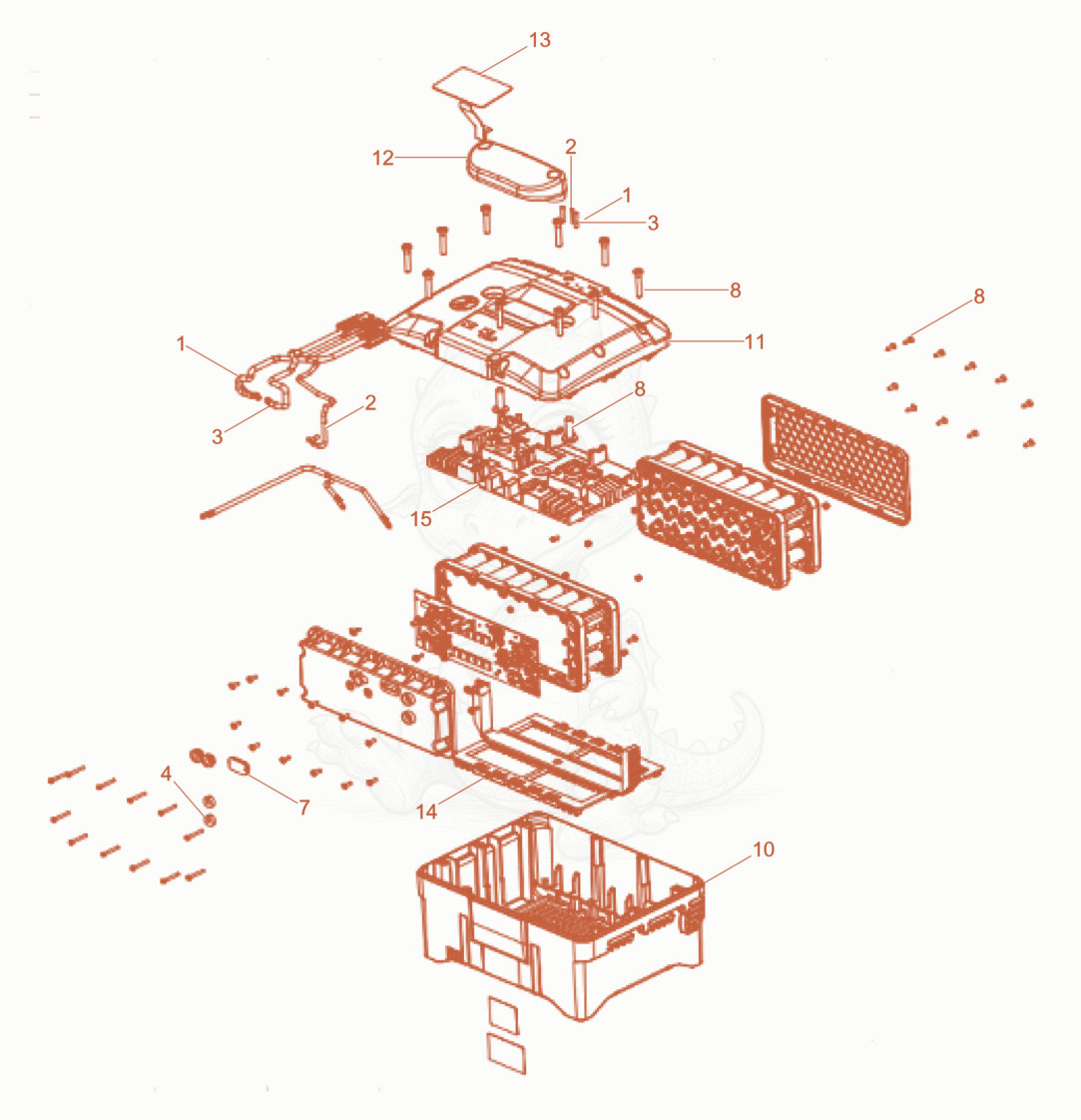

AS30E Battery BP500 Diagram
- Supply line cpl. black - 5100058287×1
- Supply line cpl. blue - 5100058288×1
- Supply line cpl. - 5100058289×1
- Plug - 5100058291×1
- Strain relief - 5100058298×1
- Set of screws - 5100058302×1
- Housing lower part - 5100001730×1
- Housing upper part - 5100003034×1
- Handle - 5100010753×1
- foly - 5100027161×1
- Rubber Inlay - 5100052030×1
- Rubber Inlay - 5100052031×1
