AS30e

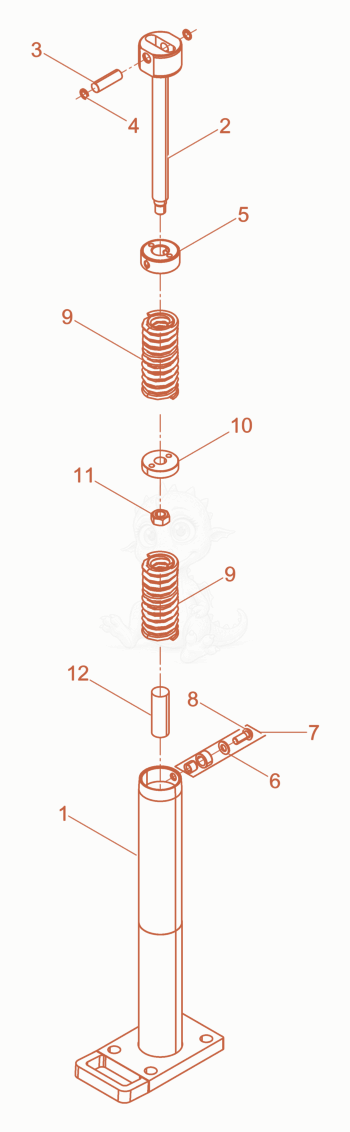

AS30E Spring cylinder cpl. Diagram
- 15100039795Not stockedSpring cylinder×1
- 25100026711Not stockedGuide piston cpl.×1
- 35100026305Not stockedPiston pin×1
- 45002001827Not stockedRetaining ring×2
- 55100026712Not stockedBushing cover×1
- WASHER-FLAT,M8,ZINC - 5000010622×1
- Anti-twist-device cpl. - 5100051090×1
- Pan head screw M 8x 25 - TX45 - 5100066081×1
- 95100068445Not stockedspring set×2
- 105100026713Not stockedPiston guide×1
- NUT M12 8,HEX - 5000010884×1
- 125100037434Not stockedattenuator×1
