AS30e

AS30E Free-floating frame cpl. Diagram

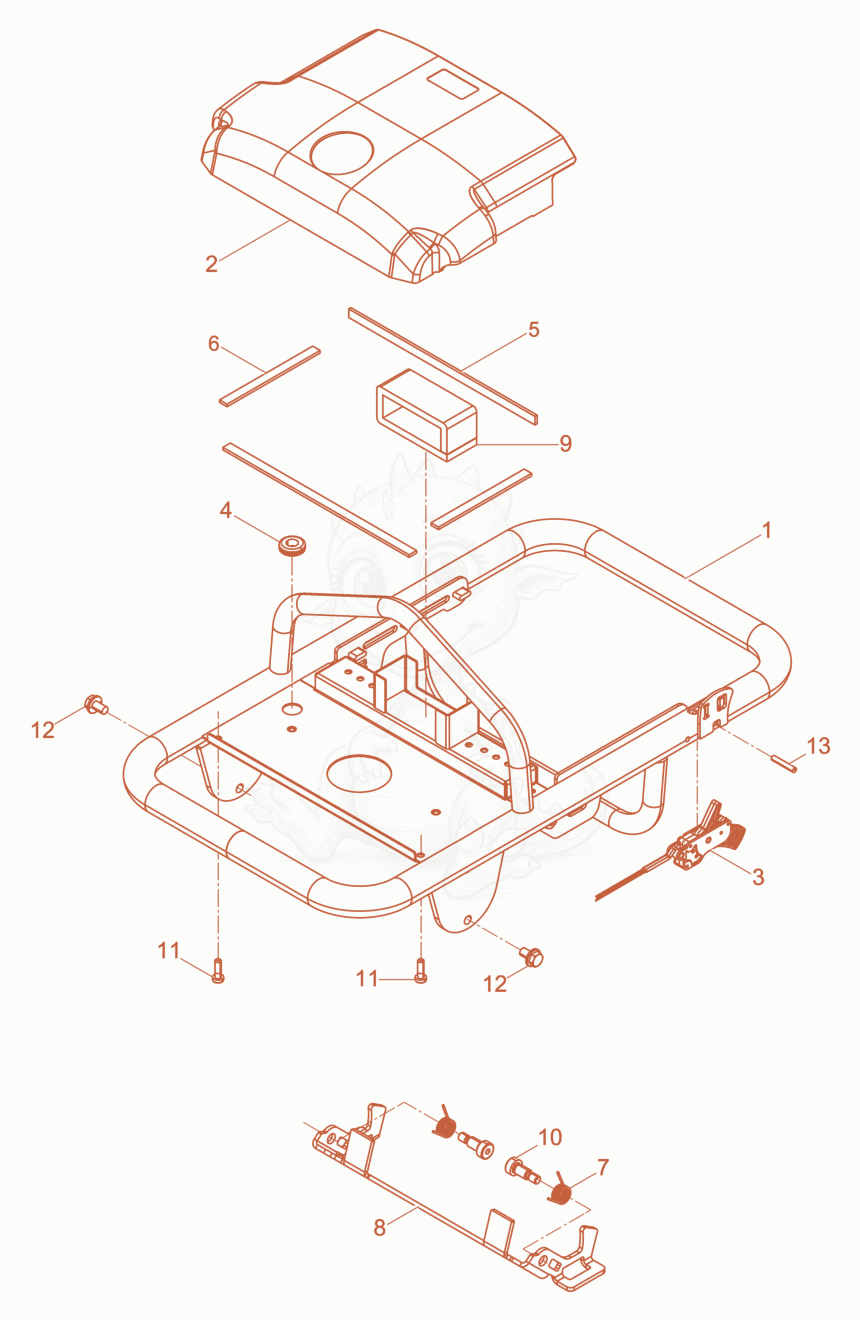

Exploded parts diagram of the Free-floating frame cpl. of a Wacker Neuson AS30E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100027127Not stocked
    Free-floating frame×1
  • 25100001723
    $240.12
    Protective Hood cpl. - 5100001723×1
  • 35100002571
    $137.65
    Switch - 5100002571×1
  • 45100002839
    $9.22
    Cable passage - 5100002839×1
  • 55100002886
    $4.42
    sealing tape long - 5100002886×2
  • 65100002888Not stocked
    sealing tape short×2
  • 75100025600
    $3.54
    Leg spring - 5100025600×2
  • 85100025574
    $187.70
    Locking plate - 5100025574×1
  • 95100002878
    $30.34
    Foam - 5100002878×1
  • 105100005556
    $2.70
    Shim screw 10x16 - 5100005556×2
  • 115000222605
    $0.75
    SCREW-PAN HD. - 5000222605×6
  • 125100027072
    $1.77
    Screw M8x16 HHCS,10.9,SEM,w/PC80 Patch - 5100027072×4
  • 135100009734
    $1.77
    Grooved pin 5x30 - 5100009734×2
