BPS1135A-VIBROPLATE

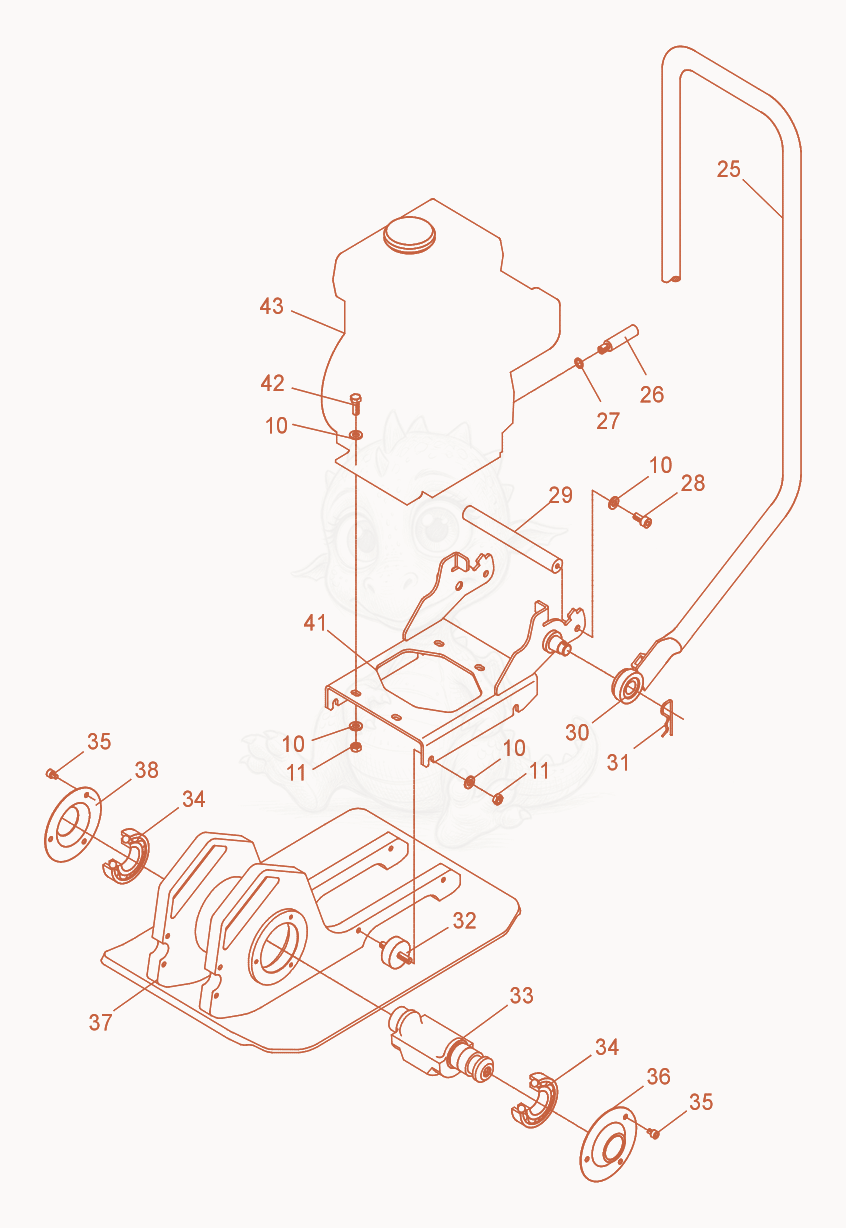

BPS1135A Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson BPS1135A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 255000096016Not stocked
    Center pole×1
  • 265000103437Not stocked
    Extension×1
  • 275000020071
    $8.06
    SEAL-RING 10 X 16 - 5000020071×1
  • 285000011544
    $0.44
    SCREW M8 X 16 SOC.HD. - 5000011544×2
  • 295000103423Not stocked
    Axle×1
  • 305000096019
    $7.91
    BUSHING,BPS1030 - 5000096019×2
  • 315000098982Not stocked
    Spring pin×2
  • 325000096641
    $12.58
    SHOCKMOUNT,BPS1030-40 - 5000096641×4
  • 335000103075
    $1,832.35
    Shaft Exciter 5000103075×1
  • 345002003939Not stocked
    Grooved ball bearing×2
  • 355000014425
    $2.06
    SCREW M6 X 8 SOC.HD. - 5000014425×6
  • 365000096045
    $7.69
    COVER,BPS1135 - 5000096045×1
  • 375000103069Not stocked
    Base plate×1
  • 385000096046
    $11.81
    COVER,BPS1135 - 5000096046×1
  • 415000103425Not stocked
    Console×1
  • 425000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×4
  • 435000102396Not stocked
    Petrol engine×1
