BPS1135A-VIBROPLATE

BPS1135A Piston-Connecting Rod-Fan Cowl-Starter Diagram

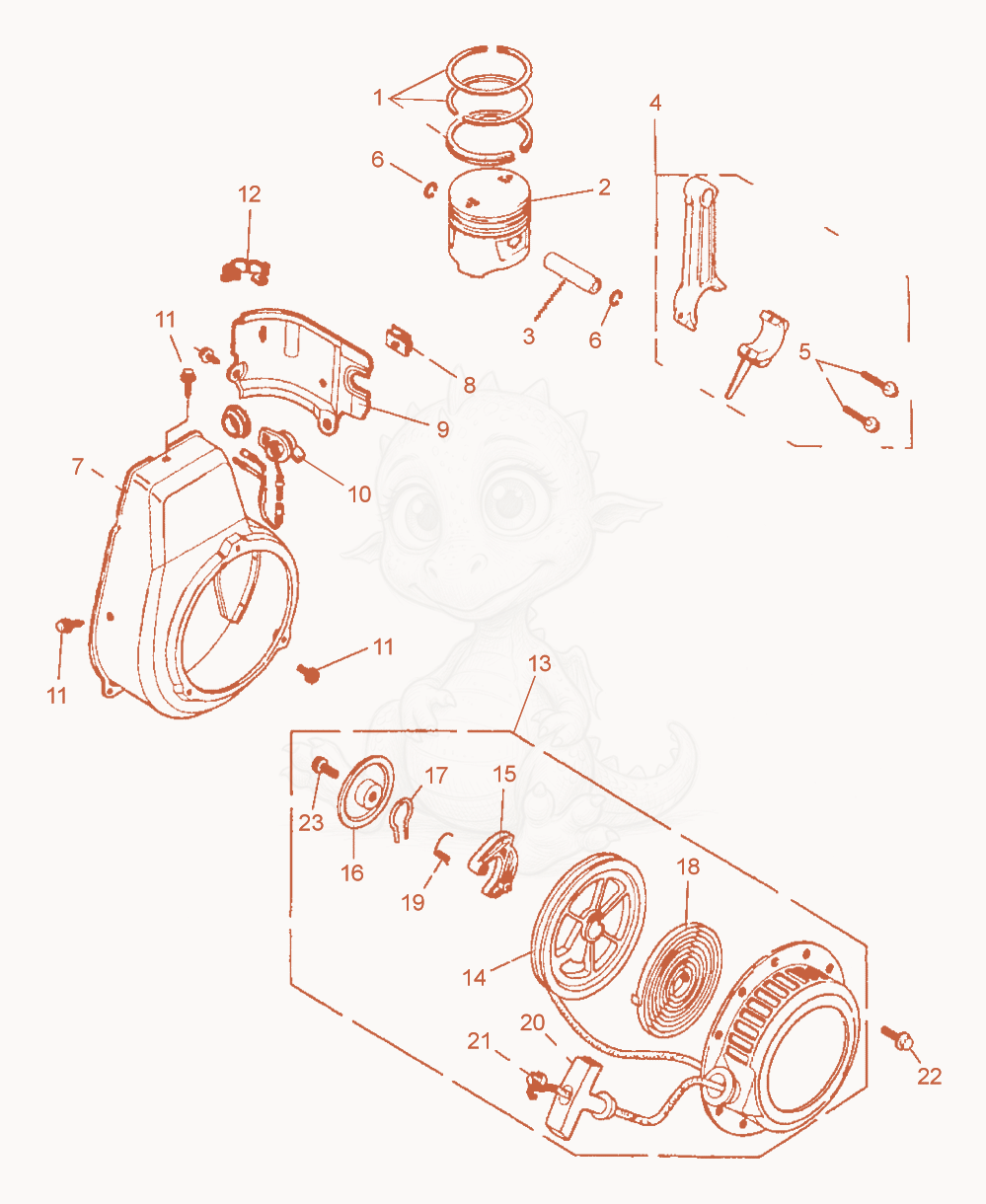

Exploded parts diagram of the Piston-Connecting Rod-Fan Cowl-Starter of a Wacker Neuson BPS1135A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000107140Not stocked
    Set of piston rings×1
  • 25000107141Not stocked
    Piston×1
  • 35000077131Not stocked
    Piston pin×1
  • 45000078576Not stocked
    Connecting rod cpl.×1
  • 55000078577Not stocked
    Connecting rod screw×2
  • 65000077132Not stocked
    Retaining ring×2
  • 75000078562Not stocked
    Housing×1
  • Clamp - 5000072338×1
  • 95000078561Not stocked
    Air duct plate×1
  • 105000054056Not stocked
    Stop button switch×1
  • 115000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×5
  • 125000097678Not stocked
    Clamp×1
  • 135000107142Not stocked
    Starter cpl.×1
  • 145000107143Not stocked
    Rope disc×1
  • 155000077160Not stocked
    Catch×1
  • 165000077157Not stocked
    Washer×1
  • 175000077158Not stocked
    Friction spring×1
  • 185000107144Not stocked
    Return spring×1
  • 195000077149Not stocked
    Ratchet spring×1
  • 205000081780
    $9.99
    HANDLE-STARTER - 5000081780×1
  • 215000107145Not stocked
    Starter rope×1
  • 225000074692
    $5.20
    SCREW M6 X 8,HEX.FLANGED - 5000074692×3
  • 235000077156Not stocked
    Screw×1
