BPS2550A-VIBROPLATE

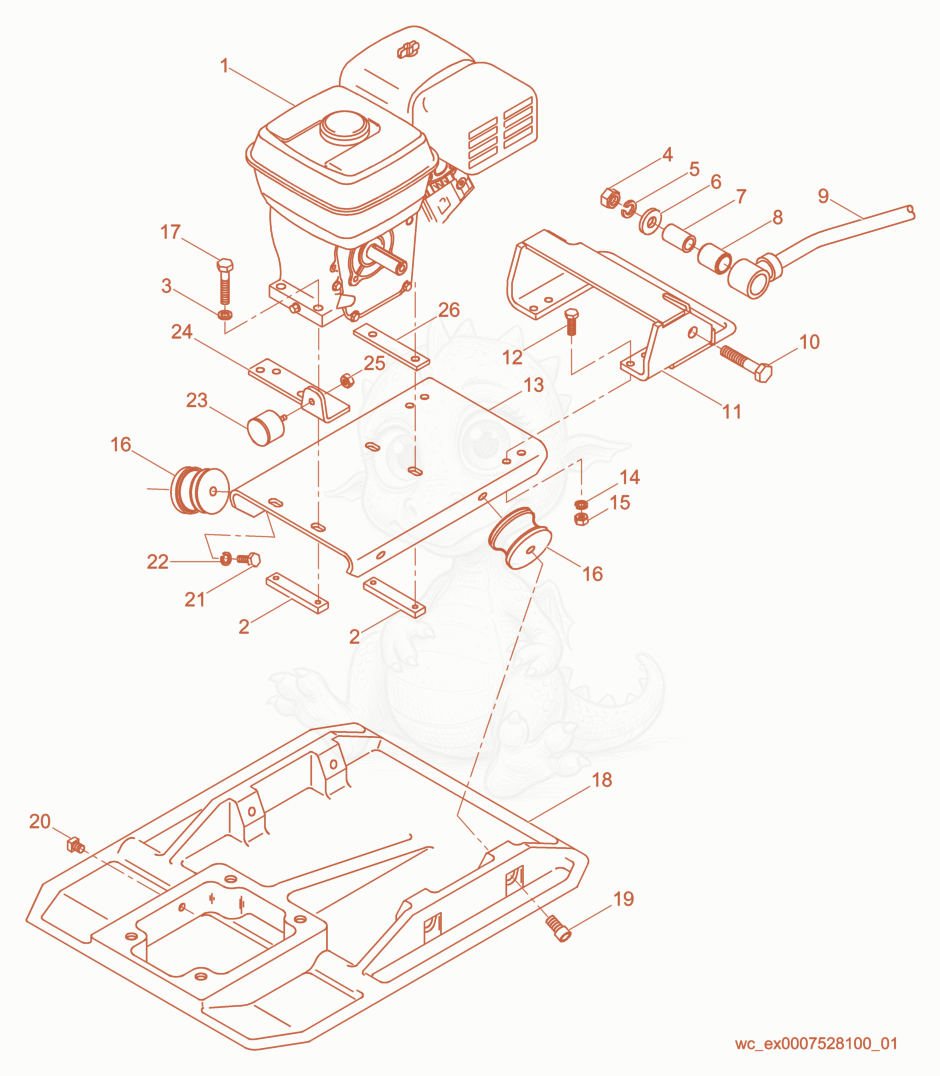

BPS2550A Baseplate/Console cpl. Diagram

Exploded parts diagram of the Baseplate/Console cpl. of a Wacker Neuson BPS2550A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000112134
    $1,452.75
    ENGINE HONDA GX240UT2X QA2 - 5000112134×1
  • 25000089683
    $266.48
    BRACKET-ENGINE MOUNT - 5000089683×2
  • 35000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 45000010886
    $0.25
    NUT M16 8,HEX. - 5000010886×2
  • 55000012650
    $0.21
    WASHER-LOCK B16 - 5000012650×2
  • 65000028469
    $56.43
    NLA WASHER-STEEL,FLAT - 5000028469×2
  • 75000028419
    $21.84
    BUSHING-HANDLE PIVOT - 5000028419×2
  • 85000028416
    $1.97
    BUSHING-HANDLE,NYLON - 5000028416×2
  • 95000081579
    $707.87
    HANDLE-LABEL ASSEMBLY - 5000081579×1
  • 105000011379
    $1.41
    SCREW M16 X 75 HX.HD. - 5000011379×2
  • 115000080619
    $576.36
    BRACKET-HANDLE,WELDMENT P-5000112006 - 5000080619×1
  • 125000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×4
  • 135000081166
    $158.39
    NLA PLATE-CONSOLE - 5000081166×1
  • 145000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×4
  • 155000010883
    $0.29
    NUT M10 8,HEX - 5000010883×4
  • 165000021104
    $40.10
    SHOCKMOUNT 68 X 55-70SH,FORM C - 5000021104×4
  • 175000011320
    $1.51
    SCREW M10 X 50 HX.HD. - 5000011320×4
  • 185000088349
    $1,536.84
    NLA BASEPLATE-W/PLUG - 5000088349×1
  • 195000017087
    $2.33
    SCREW M12 X 30 10.9,SOC - 5000017087×4
  • 205000025605
    $1.09
    PLUG 1/4-18NPT,SQ.HD.PIPE - 5000025605×1
  • 215000012368
    $0.52
    SCREW M12 X 20 HX.HD. - 5000012368×4
  • 225000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×4
  • 235000032641
    $4.96
    SHOCKMOUNT 40 X 30-55SH,FORM D - 5000032641×1
  • 245000087797
    $56.36
    BRACKET-CONSOLE,SNUBBER - 5000087797×1
  • 255000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×1
  • 265000081165Not stocked
    Spacer bar×1
