BPS2550A-VIBROPLATE

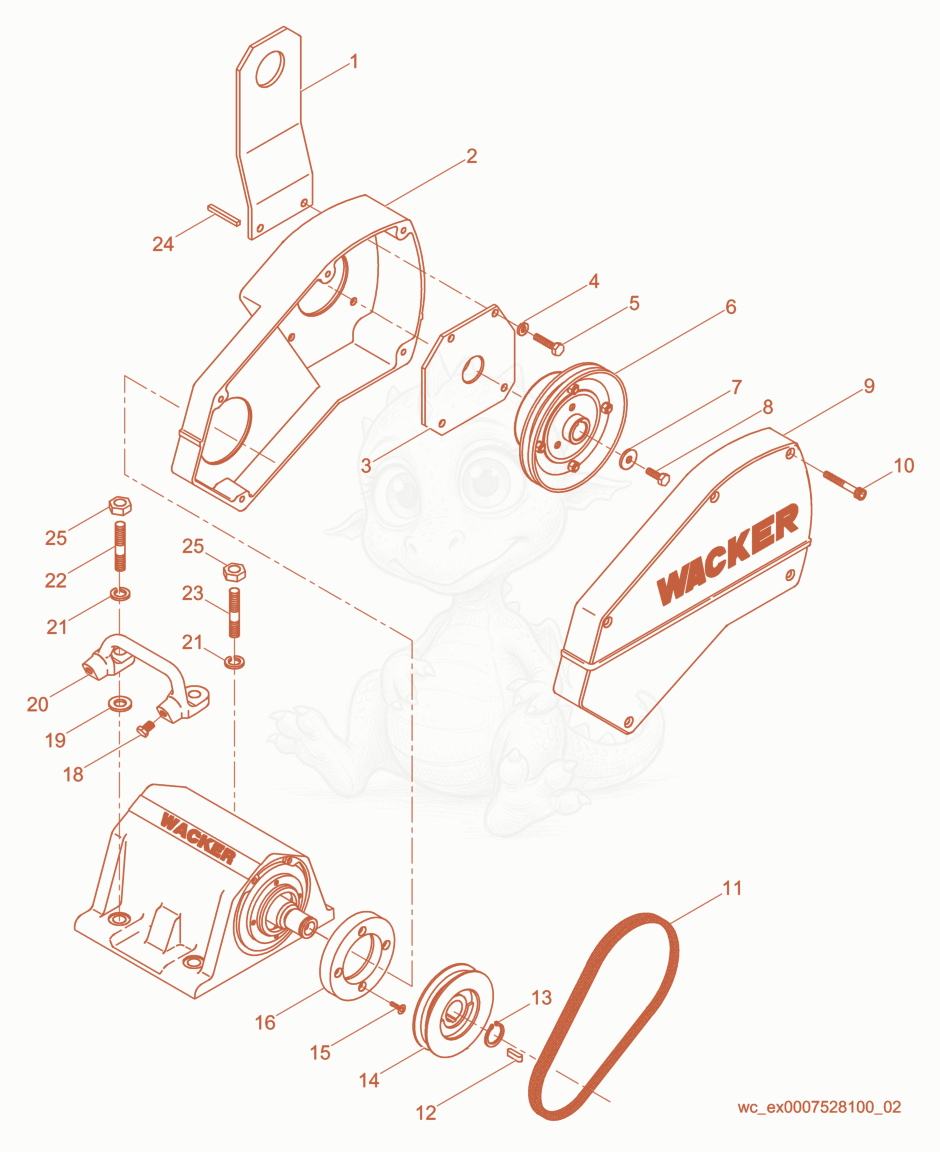

BPS2550A Drive cpl. Diagram

Exploded parts diagram of the Drive cpl. of a Wacker Neuson BPS2550A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000081173
    $120.22
    BRACKET-LIFTING P-5000175819 - 5000081173×1
  • 25000087843
    $380.49
    NLA BELTGUARD-BACKPLATE - 5000087843×1
  • 35000081197
    $66.67
    COVER-BELT GUARD ADAPTER - 5000081197×1
  • 45000025649
    $0.04
    WASHER-LOCK 3/8,MED. - 5000025649×4
  • 55000025556
    $0.58
    SCREW 3/8-16 X 1-1/2,HX.HD. - 5000025556×4
  • 65000084430
    $1,516.72
    CLUTCH-CENTRIFUGAL - 5000084430×1
  • 75000026025
    $4.21
    WASHER-STEEL,FLAT - 5000026025×1
  • 85000051740Not stocked
    Hexagonal head cap screw×1
  • 95000080600
    $271.05
    NLA BELTGUARD - 5000080600×1
  • 105000013575
    $0.77
    SCREW M8 X 60 SOC.HD. - 5000013575×5
  • 115000117956
    $59.56
    BELT-V SPA932LW W/KEVLAR - 5000117956×1
  • 125002006155
    $4.62
    KEY A8 X 7 X 25 - 5002006155×1
  • 135002001815
    $0.46
    RET.RING-EXT 30MMX1.5MM, - 5002001815×1
  • 145000080613
    $322.77
    PULLEY-MACHINED - 5000080613×1
  • 155000080603
    $0.42
    SCREW M6 X 20 FL.HD. - 5000080603×4
  • 165000087796
    $97.31
    RING-WEAR - 5000087796×1
  • 185000014316
    $0.98
    SCREW M12 X 16 HX.HD. - 5000014316×2
  • 195000010618
    $0.28
    WASHER B17 FLAT - 5000010618×2
  • 205000049529
    $473.15
    HANDLE-LIFT - 5000049529×1
  • 215000012650
    $0.21
    WASHER-LOCK B16 - 5000012650×4
  • 225000077926
    $4.36
    STUD M16 X 60 - 5000077926×2
  • 235000030003
    $10.27
    STUD M16 X 40 - 5000030003×2
  • 245003012513
    $0.54
    KEY-SQUARE 1/4 X 2-3/16 - 5003012513×1
  • 255000010886
    $0.25
    NUT M16 8,HEX. - 5000010886×4
