BPU2540 REVERSIBLE VIBROPLATE

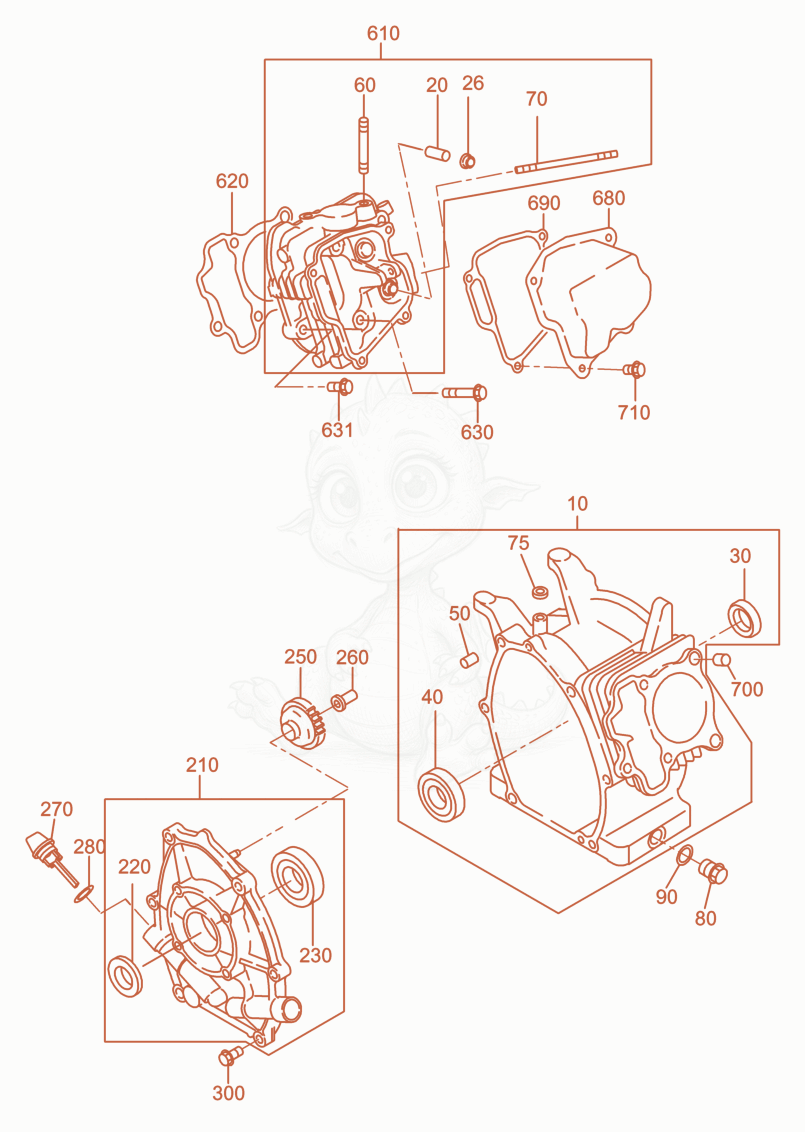

BPU2540 Crankcase Diagram
- 5000205115$27.92gasket set - 5000205115×1
- CRANKCASE COMPLETE - 5000205108×1
- GUIDE-VALVE - 5000156440×2
- seal - 5000156441×1
- SEAL-OIL - 5000156442×1
- BEARING-BALL - 5000156443×1
- pipe - 5000156444×2
- STUD - 5000151178×2
- STUD - 5000156446×2
- SEAL-OIL - 5000156447×1
- PLUG-OIL - 5000117215×2
- SEAL-RING - 5000029327×2
- COVER-BEARING ASSEMBLY - 5000156450×1
- SEAL-OIL - 5000156451×1
- SEAL-OIL - 5000156451×1
- 2505000205110Not stockedGovernor gear×1
- SLEEVE - 5000205111×1
- GAUGE-OIL LEVEL - 5000156454×2
- SEAL-RING - 5000075754×2
- BOLT-FLANGE - 5000156455×6
- CYLINDER HEAD ASSEMBLY - 5000205113×1
- GASKET-CYLINDER HEAD - 5000156457×1
- BOLT-FLANGE - 5000156458×4
- BEARING-BALL - 5000205289×1
- COVER-ROCKER ARM - 5000156545×1
- 6905000205293Not stockedSeal×1
- pipe - 5000156444×2
- 7105000053612Not stockedScrew×4
