BPU2540 REVERSIBLE VIBROPLATE

BPU2540 Fan-Starter Diagram

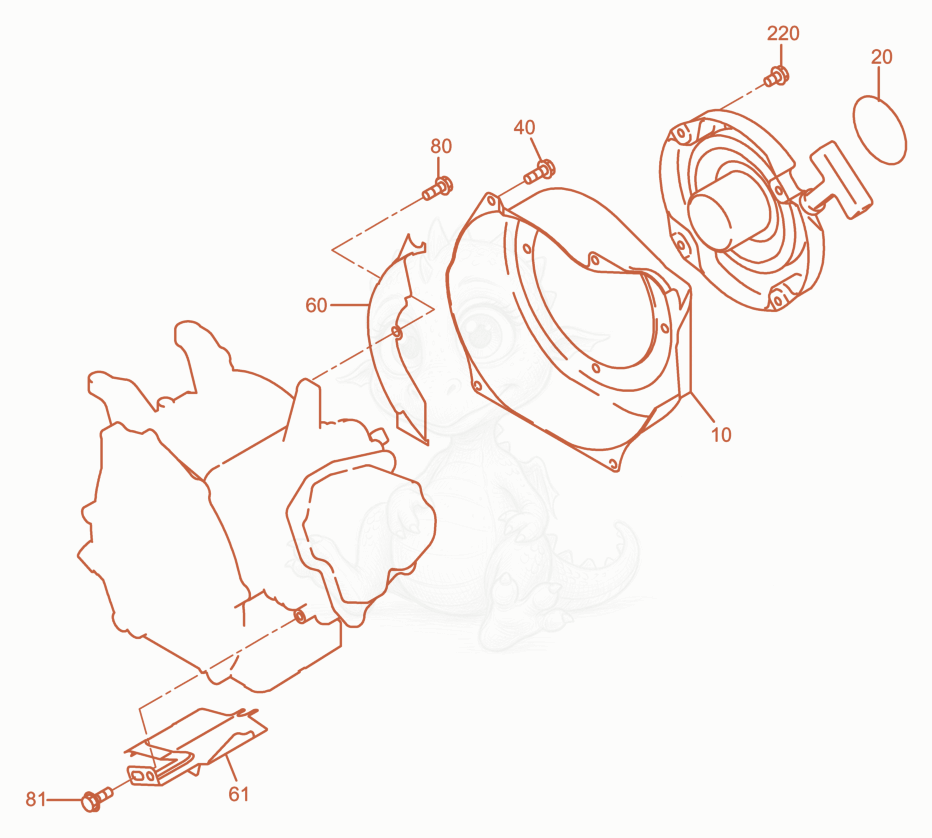

Exploded parts diagram of the Fan-Starter of a Wacker Neuson BPU2540, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000156522
    $95.91
    HOUSING-BLOWER - 5000156522×1
  • 205000156523
    $7.58
    LABEL-WACKER - 5000156523×1
  • 405000053648
    $2.65
    SCREW M6 X 14,HEX.FLANGE - 5000053648×1
  • 605000156524
    $25.54
    BAFFLE-CYLINDER - 5000156524×1
  • 615000156525
    $95.66
    BAFFLE - 5000156525×1
  • 805000205141
    $2.60
    BOLT-FLANGE - 5000205141×1
  • 815000053612Not stocked
    Screw×1
  • 2205000156645
    $2.46
    BOLT-FLANGE - 5000156645×1
