Vibratory plate BPU 4045A

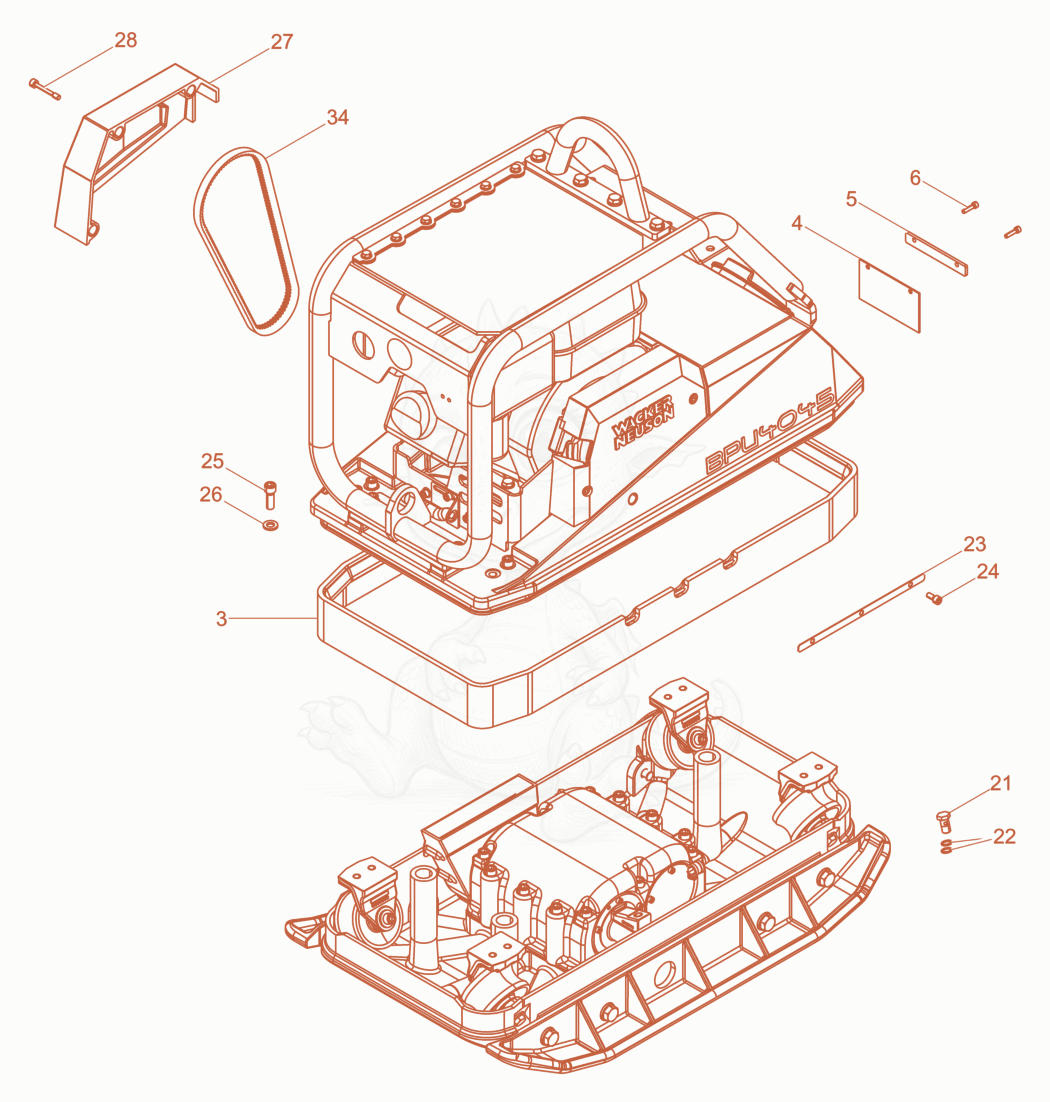

BPU4045A Vibration Plate Diagram
- GUARD - 5000039145×1
- COVER - 5000043478×1
- PLATE-STRIP - 5000039206×1
- SCREW M6 X 25 SOC.HD. - 5000011550×2
- SCREW-HOLLOW 10-3 - 5000043201×1
- SEAL-RING 14 X 18 - 5000012624×2
- MOUNTING STRIP - 5000097110×2
- SCREW M8X18 SOC.HD. - 5000103962×6
- SCREW M12 X 35 SOC.HD. - 5000011528×4
- WASHER-LOCK HS12,HIGH TENSION - 5000021465×4
- COVER-RIGHT - 5000220150×1
- SCREW-THIN SHANK END - 5000216659×3
- BELT-V,975MM - 5000129814×1
