Vibratory plate BPU 4045A

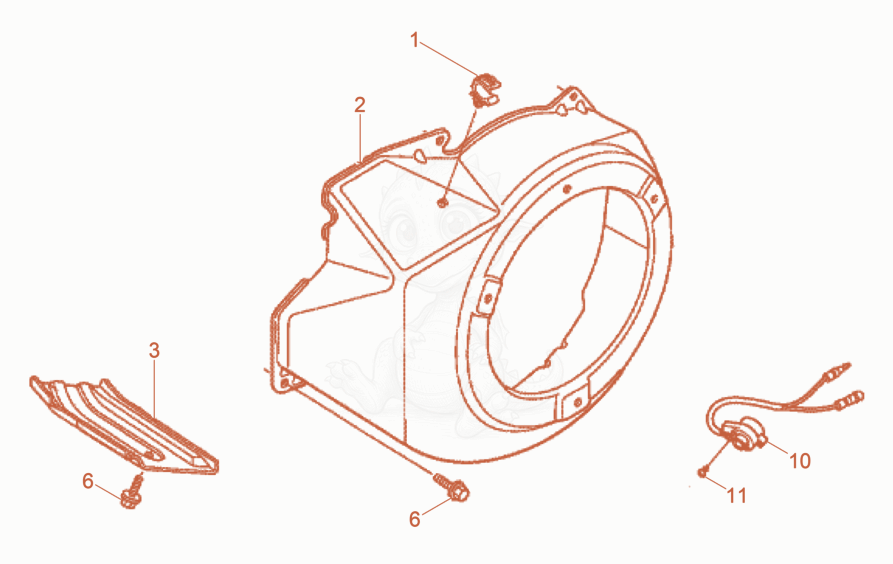

BPU4045A Fan hood Diagram

Exploded parts diagram of the Fan hood of a Wacker Neuson BPU4045A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000074689
    $3.60
    CLIP - 5000074689×1
  • 25100000416
    $21.19
    Cover cpl. - 5100000416×1
  • 35100000421
    $22.56
    Cover - 5100000421×1
  • 65000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×6
  • 105200000427
    $14.77
    Switch-shutoff - 5200000427×1
  • 115100000448Not stocked
    Screw×2
