BRS90

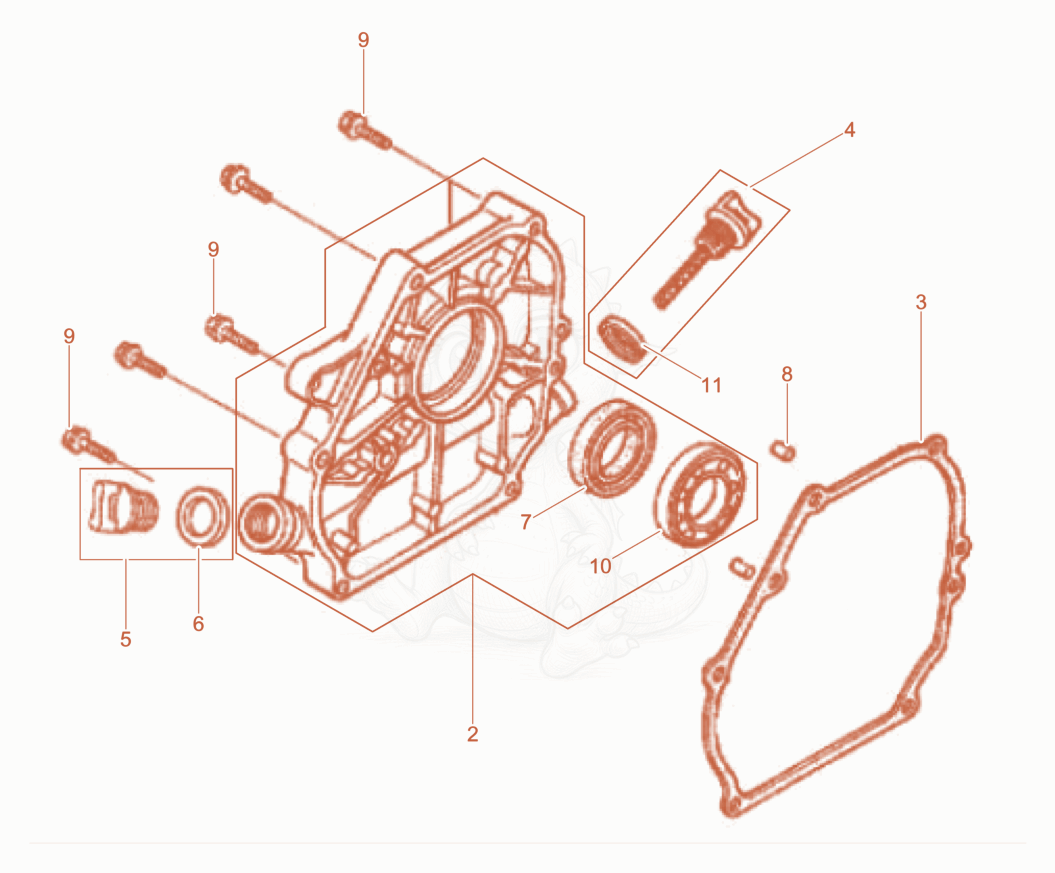

BRS90 Crankcase cover Diagram

Exploded parts diagram of the Crankcase cover of a Wacker Neuson BRS90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100009313Not stocked
    Crankcase cover cpl.×1
  • 35100036266
    $17.02
    Gasket - 5100036266×1
  • 45100060757Not stocked
    Screw Plug×1
  • 55100036267
    $10.83
    Oil plug cpl. - 5100036267×1
  • 65100036268
    $7.21
    Gasket - 5100036268×1
  • 75100039035
    $18.82
    Ring seal - 5100039035×1
  • 85000053995
    $3.39
    PIN A8 X 14,DOWEL - 5000053995×2
  • 95100003504Not stocked
    Flange screw×6
  • 105100003510Not stocked
    Grooved ball bearing×1
