BRS90

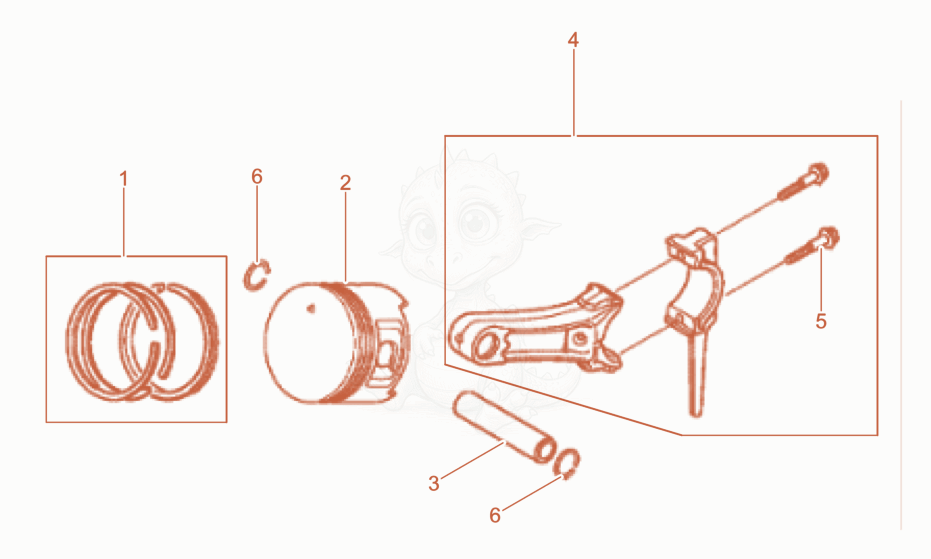

BRS90 Piston Diagram

Exploded parts diagram of the Piston of a Wacker Neuson BRS90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100050562
    $117.40
    Set of piston rings - 5100050562Unknown×1
  • 15100050563Not stocked
    Set of piston rings×1
  • 15100050564Not stocked
    Set of piston rings×1
  • 15100050565Not stocked
    Set of piston rings×1
  • 25100050566
    $128.98
    Piston - 5100050566Unknown×1
  • 25100050567Not stocked
    Piston 0,25×1
  • 25100050568Not stocked
    Piston 0,5×1
  • 25100050569Not stocked
    Piston 0,75×1
  • 35100036276Not stocked
    Pin×1
  • 45100050570
    $227.99
    Connecting rod - 5100050570×1
  • 45100050571
    $227.99
    Connecting rod - 5100050571×1
  • 55100005438Not stocked
    Screw×2
  • 65000081994
    $1.68
    CLIP-PISTON PIN - 5000081994×2
