BS60Y

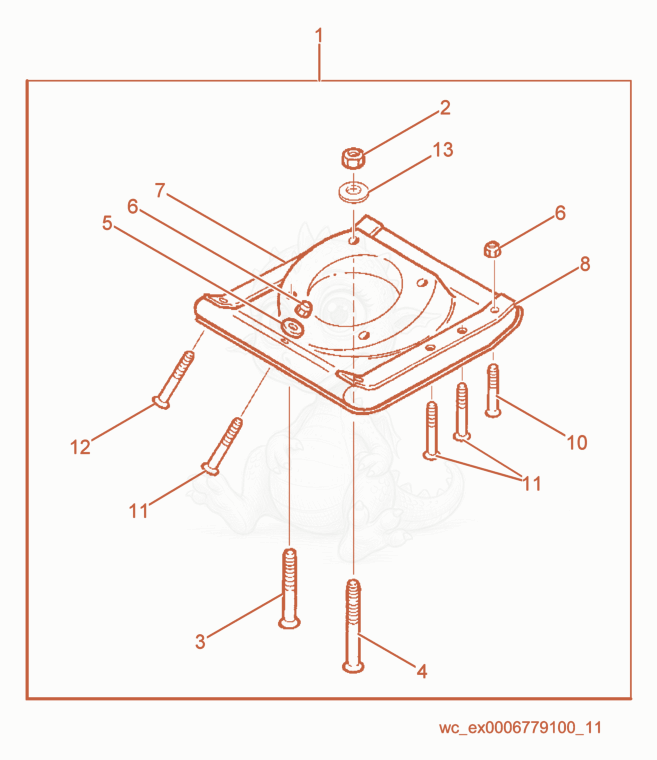

BS60Y Ramming Shoe Kit Diagram

Exploded parts diagram of the Ramming Shoe Kit of a Wacker Neuson BS60Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000077724Not stocked
    Ramming Shoe Kit×1
  • 25000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 35000011158
    $1.79
    BOLT-PLOW M12X75 DIN 604 - 5000011158×2
  • 45000011154
    $4.42
    BOLT-PLOW M12X100 DIN 604 - 5000011154×2
  • 45000103541
    $6.85
    BOLT-PLOW M12X130 - 5000103541×1
  • 55001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×1
  • 65000010882
    $0.05
    NUT M8 8,HEX - 5000010882×9
  • 75000077721Not stocked
    Wear plate×1
  • 85000077722Not stocked
    Wear plate×1
  • 105000011194
    $0.93
    BOLT-PLOW M8X40 DIN 604 - 5000011194×2
  • 115000011192
    $1.39
    BOLT-PLOW M8X50 DIN 604 - 5000011192×5
  • 125000011191
    $1.70
    BOLT-PLOW M8X55 - 5000011191×2
  • 135000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×2
