BS60Y

BS60Y Carburetor cpl. Diagram

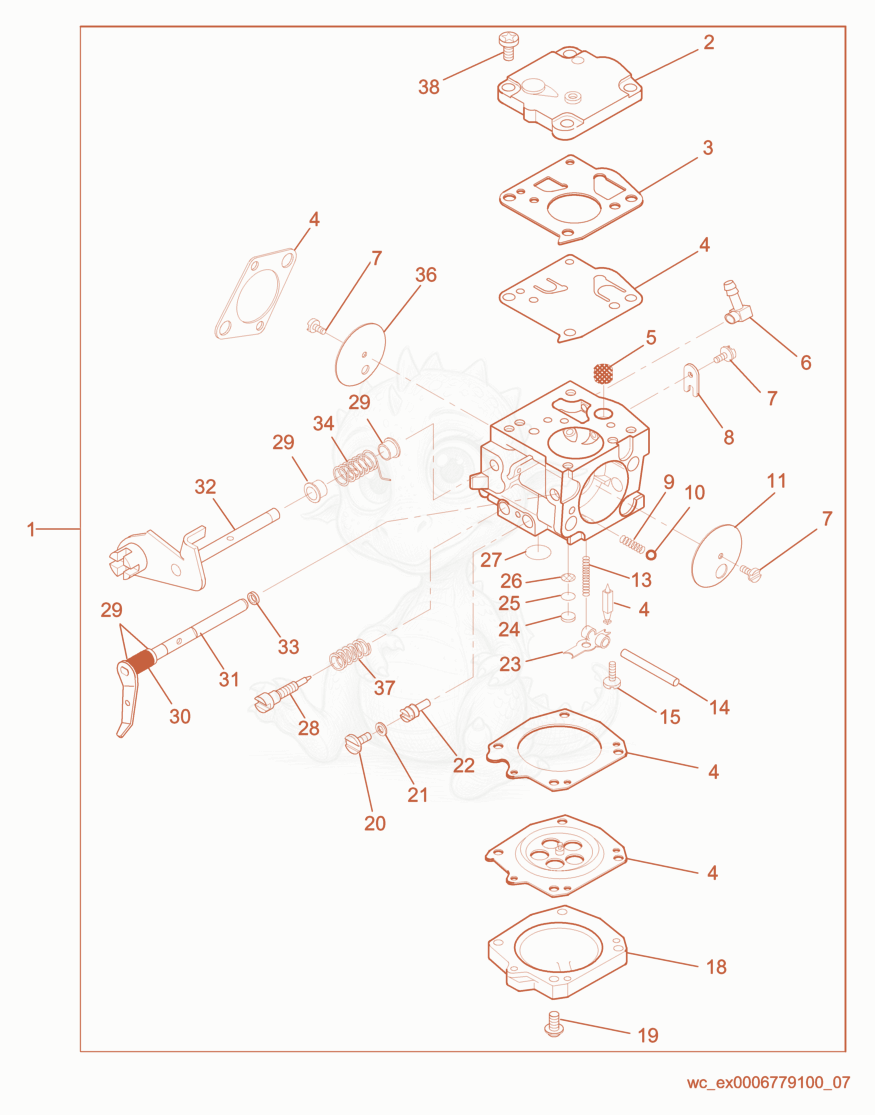

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson BS60Y, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000078843
    $151.48
    CARBURETOR-TILLOTSON - 5000078843×1
  • 25000079787
    $9.66
    COVER-FUEL PUMP,CARBURETOR - 5000079787×1
  • 35002005668
    $0.63
    GASKET-CARB.FUEL PUMP - 5002005668×1
  • 45002005690
    $16.17
    KIT-CARBURETOR REPAIR - 5002005690×1
  • 55002005679
    $0.99
    SCREEN-FUEL INLET FILTR - 5002005679×1
  • 65000074543
    $4.77
    FITTING-ELBOW,BARBED,HOSE - 5000074543×1
  • 75000112355
    $0.77
    SCREW #4-40X1/4 SERR. - 5000112355×3
  • 85002005684
    $7.55
    CLIP-THROTTLE SHAFT - 5002005684×1
  • 95002005403Not stocked
    Spring×1
  • 105002005489
    $0.67
    BALL-CARBURETOR CHOKE VALVE - 5002005489×1
  • 115000075948
    $1.97
    VALVE-CHOKE SHUTTER - 5000075948×1
  • 125000074533
    $2.99
    NEEDLE - 5000074533×1
  • 135002005427
    $0.70
    SPRING-INLET LEVER - 5002005427×1
  • 145002005676
    $5.63
    PIN-INLET FULCRUM - 5002005676×1
  • 155002005677
    $0.76
    SCREW-INLET PIVOT PIN RETAINER - 5002005677×1
  • 185000074534
    $10.76
    COVER-CARBURETOR DIAPHRAGM - 5000074534×1
  • 195000074535Not stocked
    Screw w/washer×4
  • 205000075946
    $1.29
    SCREW-SEALING CAP - 5000075946×1
  • 215000075945
    $0.63
    WASHER-COPPER SEALING - 5000075945×1
  • 225000080532
    $5.63
    JET-SIZE .74MM,BLACK - 5000080532×1
  • 235002005675
    $1.24
    LEVER-INLET CONTROL - 5002005675×1
  • 245002005656
    $0.76
    PLUG-CARB.BODY CHANNEL,SMALL - 5002005656×1
  • 255002005655
    $0.63
    RET.RING 4.8MM,FORM C - 5002005655×1
  • 265002005654
    $1.09
    SCREEN-CARBURETOR BODY CHANNEL - 5002005654×1
  • 275002005657
    $1.49
    PLUG-CARB.BODY CHANNEL,LARGE - 5002005657×1
  • 285002005671
    $3.69
    SCREW-IDLE MIXTURE ADJUSTMENT - 5002005671×1
  • 295000074541
    $10.70
    BUSHING - 5000074541×4
  • 305000076567
    $1.49
    SPACER-RUBBER POSITIONER - 5000076567×1
  • 315000079788
    $6.50
    SET-CHOKE SHAFT W/LEVER - 5000079788×1
  • 325000079789
    $18.38
    SET-THROTTLE SHAFT W/LEVER - 5000079789×1
  • 335000074544
    $0.92
    O-RING 2.5 X 1.7 - 5000074544×1
  • 345000074542
    $0.28
    SPRING-THROTTLE SHAFT RETURN - 5000074542×1
  • 355002005666
    $0.79
    GASKET-CARBURETOR FLANGE - 5002005666×1
  • 365000079321
    $1.03
    VALVE-THROTTLE SHUTTER - 5000079321×1
  • 375002005694
    $0.32
    SPRING-IDLE MIXTURE SCREW - 5002005694×1
  • 385000076566
    $1.29
    SCREW-COVER RETAINER - 5000076566×4
