BS70-2plus 11in

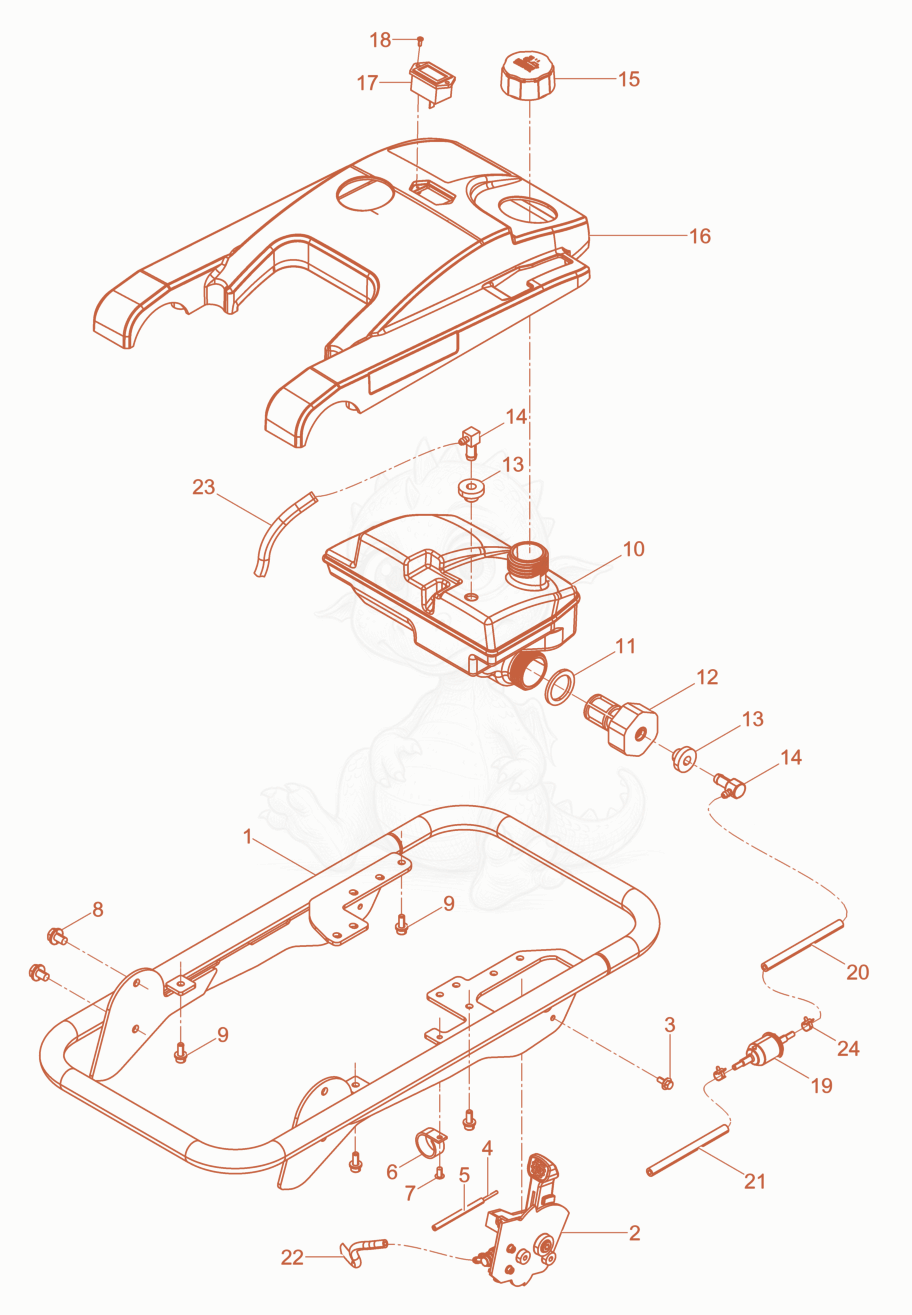

BS70-2PLUS11IN Guiding frame cpl. Diagram
- Guide Handle - 5100028600×1
- Throttle Control cpl. - 5100030465×1
- SCREW M5X12 HX HD,BLK MED LOC - 5000155845×2
- Bowden cable - 5100032225×1
- outer bowden cable - 5100032226×1
- CLIP-WIRE HARNESS,BLACK - 5000155562×1
- Blind rivet 5x10 - 5100035983×1
- Screw M8x14 HHCS,10.9,SEM,w/PC80 Patch - 5100027071×4
- SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×8
- Fuel Tank - 5100030302×1
- SEAL-RING - 5000086312×1
- water filter - 5100028935×1
- Bush - 5100032258×2
- Connecting nipple - 5100066546×2
- tank cap 2i/4As - 5100030407×1
- Cover 2plus - 5100031423×1
- working hour meter 2-Takt - 5100034578×1
- Screw - 5000209453×2
- Fuel Filter - 5100068032×1
- Fuel hose - 5100034651×1
- Fuel hose - 5100034652×1
- Fuel hose - 5100034653×1
- Fuel hose - 5100034654×1
- CLAMP 3/8 DIA.,BLACK - 5000171698×2
